Engine Compartment
Engine Compartment

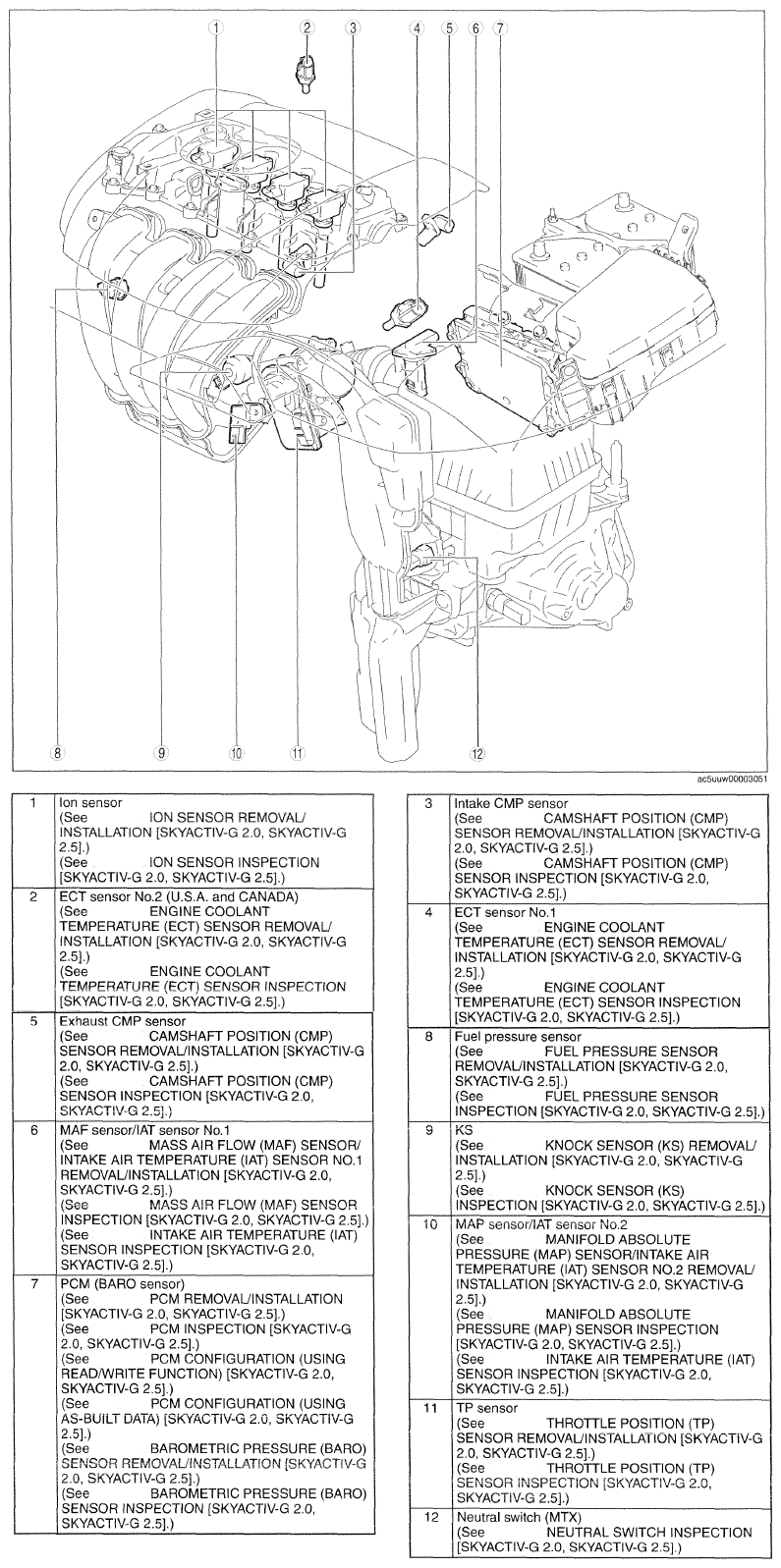

Fig 1: Control System Location Components (Skyactiv-G 2.0, Skyactiv-G 2.5) - Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
