Hose Connection Note

  1. Align the white marks on the hose with the white marks on the pipe and connect them.

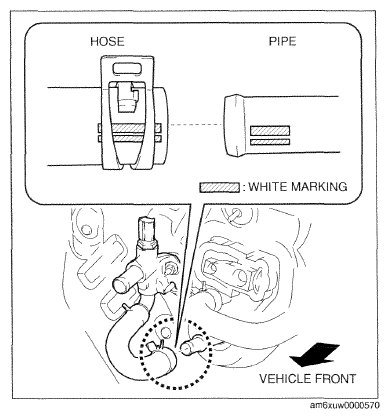

    Fig 1: Aligning White Marks On Hose With White Marks On Pipe
    G09758720Courtesy of MAZDA MOTORS CORP.
