PCM Cover Installation Note

  1. Insert the PCM cover end into area A shown in the figure.
  2. Temporarily tighten the two bolts, then completely tighten them.

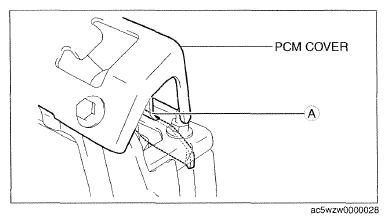

    Fig 1: Identifying PCM Cover
    G09758680Courtesy of MAZDA MOTORS CORP.
