Ignition System Location Index

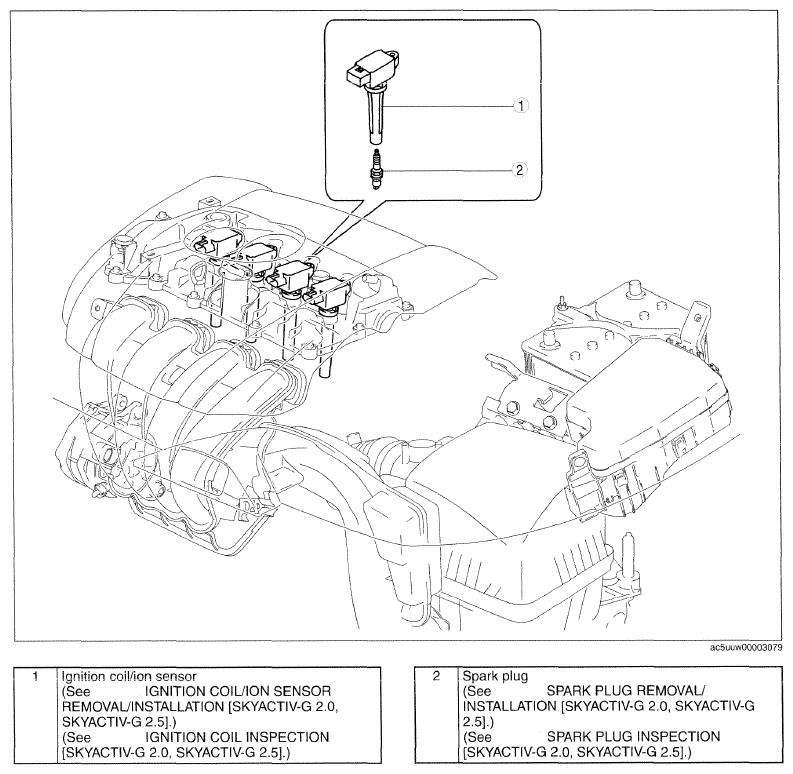

Fig 1: Ignition System Components Location (Skyactiv-G 2.0, Skyactiv-G 2.5)

G09758640

Courtesy of MAZDA MOTORS CORP.
