Inspection Using An Oscilloscope (Reference)
>>
CKP signal
CKP signal

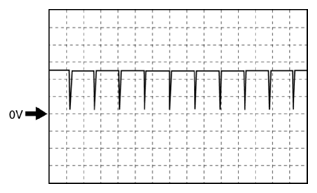

Fig 1: CKP Signal Waveform
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1AA(+)-body ground(-)
Oscilloscope setting
2 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
Courtesy of MAZDA MOTORS CORP.
