Back-up Ring Installation Note

  1. Install the back-up ring, making sure it is installed in the right direction.

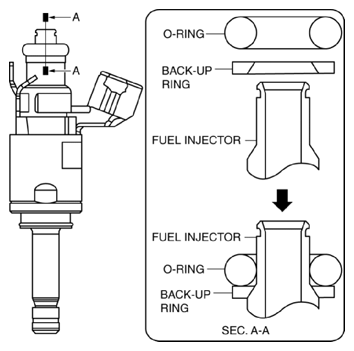

    Fig 1: Installing Back-Up Ring
    G10946884Courtesy of MAZDA
  2. After installing the back-up ring, verify that it is installed correctly.

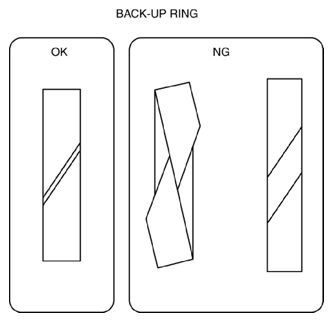

    Fig 2: Identifying OK And NG Back-Up Ring Installation
    G10946885Courtesy of MAZDA
