Fuel System Flow Diagram
Fuel System Flow Diagram

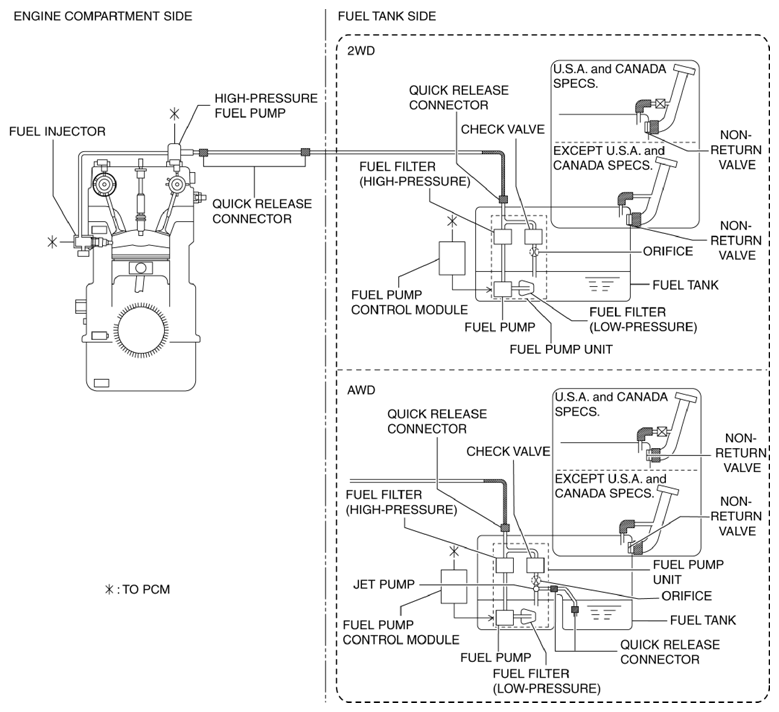

Fig 1: Fuel System Flow Diagram (Engine Compartment Side)
Courtesy of MAZDA
Courtesy of MAZDA
