U.S.A. And CANADA: Notes

  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (Refer to BEFORE SERVICE PRECAUTION .)
  3. Drain the fuel. (Refer to FUEL DRAINING PROCEDURE .)
  4. Open the fuel-filler lid.
  5. Remove the rear wheel and tire (LH). (Refer to WHEEL AND TIRE REMOVAL/INSTALLATION .)
  6. Remove the rear mudguard (LH). (Refer to REAR MUDGUARD REMOVAL/INSTALLATION .)
  7. Remove the floor under cover No. 2 (LH). (Refer to FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.
  10. Complete the "AFTER SERVICE PRECAUTION". (Refer to AFTER SERVICE PRECAUTION .)

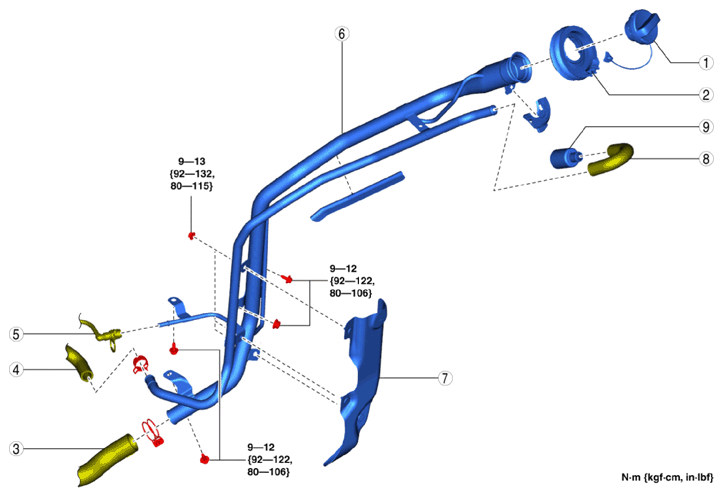

    Fig 1: Fuel-Filler Pipe Components With Torque Specifications
    G10946843Courtesy of MAZDA
    COMPONENT DESCRIPTION

    1 Fuel-filler cap
    2 Dust cover
    (See Dust cover removal note (U.S.A. and CANADA) .)
    3 Joint hose
    (See Joint hose installation note (U.S.A. and CANADA) .)
    4 Evaporative hose No. 1
    5 Quick release connector
    (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV G 2.5T] .)
    6 Fuel-filler pipe
    7 Fuel-filler pipe protector
    8 Evaporative hose No. 2
    9 Plug
