Wave pattern (reference)

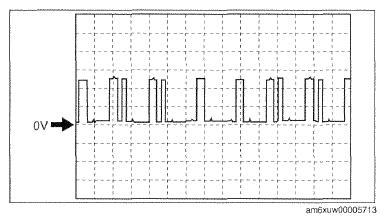

Fig 1: CMP Sensor Wave Pattern

G09785490

Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

2 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
