Intake Air Temperature (IAT) Sensor Inspection
>>
IAT Sensor No. 1
>>
Specification
IAT Sensor No. 1: Specification
IAT (°C {°F})
Resistance (Kilohms)
-20 {-4}
13.7-16.6
20 {68}
2.49-2.79
60 {140}
0.622-0.703

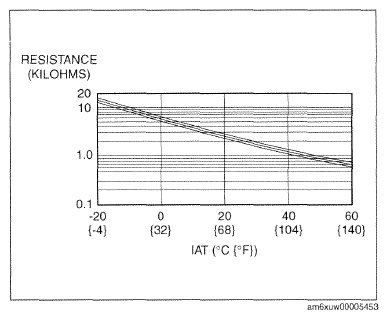

Fig 1: Resistance Characteristic Graph
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
