IAT Sensor No. 2: Specification

IAT (°C {°F}) Resistance (Kilohms)
0 {32} Approx. 5.9
20 {68} 2.375-2.625
80 {176} Approx. 0.323
130 {266} Approx. 0.0893

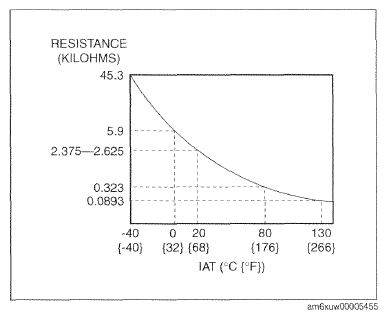

Fig 1: Resistance Characteristic Graph
G09785533Courtesy of MAZDA MOTORS CORP.
