Continuity Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
  3. Inspect for continuity between neutral switch terminal A and B.

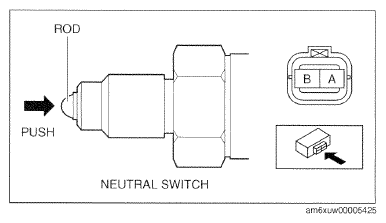

    Fig 1: Neutral Switch Terminal
    G09785511Courtesy of MAZDA MOTORS CORP.
