Visual Inspection

Inspect the following items:

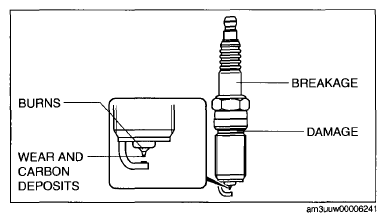

Fig 1: Inspecting Spark Plug (Skyactiv-G 2.5)

G09074507

Courtesy of MAZDA MOTORS CORP.

If any of the following malfunctions are indicated, replace the spark plug.

Insulator breakage
Worn electrode
Damaged gasket
Badly burned insulator (sparking side)
