Control System Diagram

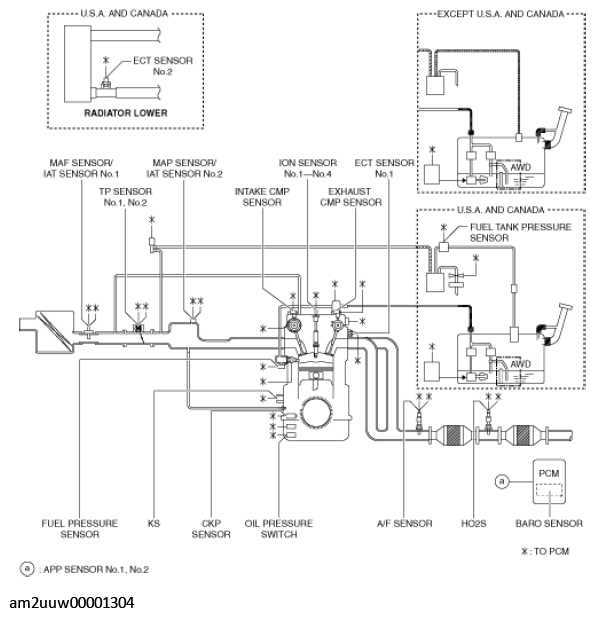

Fig 1: Control System Diagram (SKYACTIV-G 2.0)

G11435588

Courtesy of MAZDA MOTORS CORP.
