Starter Installation Note

CAUTION:

Do not overlap the starter with the end plate (area A shown in figure) when installing. If the starter is not correctly installed, the nut installed to the drive plate may contact the end plate causing abnormal noise.

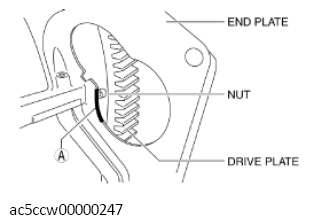

Fig 1: Cautions For Not Overlapping Starter With End Plate

Courtesy of MAZDA MOTORS CORP.
