Stopper Ring Removal Note

NOTE:
  • When removing the stopper ring, do not damage the fuel injector with the tool.
  1. Remove the stopper ring as shown in the figure.

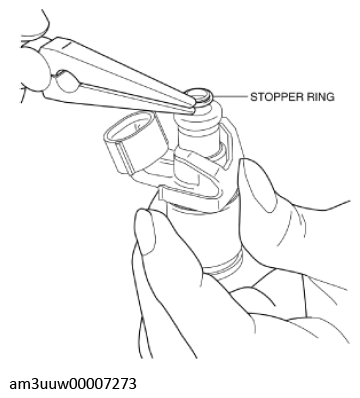

    Fig 1: Removing Stopper Ring
    G11436326Courtesy of MAZDA MOTORS CORP.
