Purge control

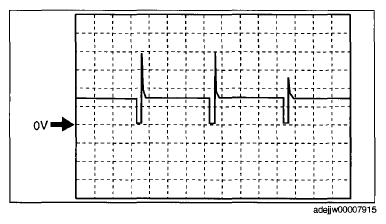

Fig 1: Purge Control Wave Pattern Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1AW (+) -body ground (-)

Oscilloscope setting

• 10 V/DIV (Y), 50 ms/DIV (X), DC range

Vehicle condition

• Racing (Engine speed: 2, 000 rpm)
