Intake CMP Signal

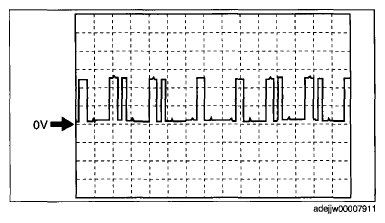

Fig 1: Exhaust CMP Output Voltage Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1V(+)-body ground(-)

  Oscilloscope setting

• 2 V/DIV (Y), 20 ms/DIV (X), DC range

  Vehicle condition

• Idle (after warm up)
