Wastegate Valve Control (-) Signal

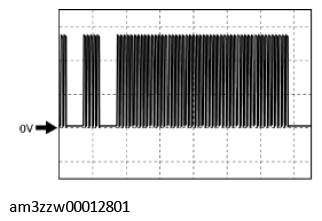

Fig 1: Wastegate Valve Control (-) Output Voltage Signal Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1BZ(+)-body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 10 ms/DIV (X), DC range

  Vehicle condition

• Accelerator pedal depressed
