KS Installation Note

CAUTION:

Verify that there is no foreign matter caught between the KS unit and cylinder block as it will cause the sensor to operate incorrectly.

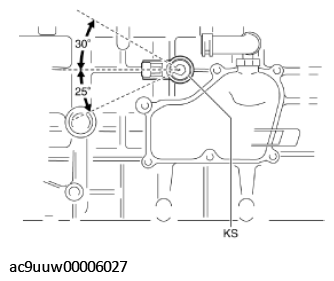

Install the KS so that the KS connector direction is within the range shown in the figure.

Courtesy of MAZDA MOTORS CORP.
