PCM Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>

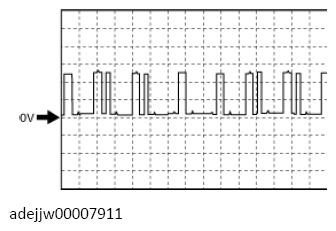

Exhaust CMP Signal
Exhaust CMP Signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1Q (+)-body ground (-)
Oscilloscope setting
2 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
Courtesy of MAZDA MOTORS CORP.
