Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
PCM Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>

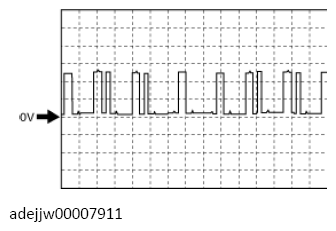

Intake CMP Signal
Intake CMP Signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1V (+)-body ground (-)
Oscilloscope setting
2 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
