Home >> Mazda >> 2020 >> CX-9 Signature >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> High Pressure Fuel Pump Removal/Installation >> Protector Removal Note

Protector Removal Note

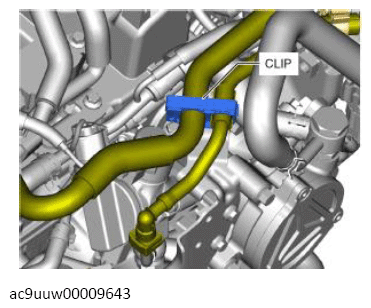

  1. Remove the clip from the protector.
    G13569869Courtesy of MAZDA MOTORS CORP.

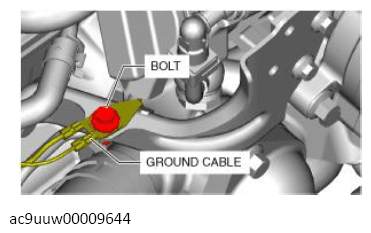

  2. Remove the ground cable from the protector.
    G13569870Courtesy of MAZDA MOTORS CORP.
  3. Remove the protector.
