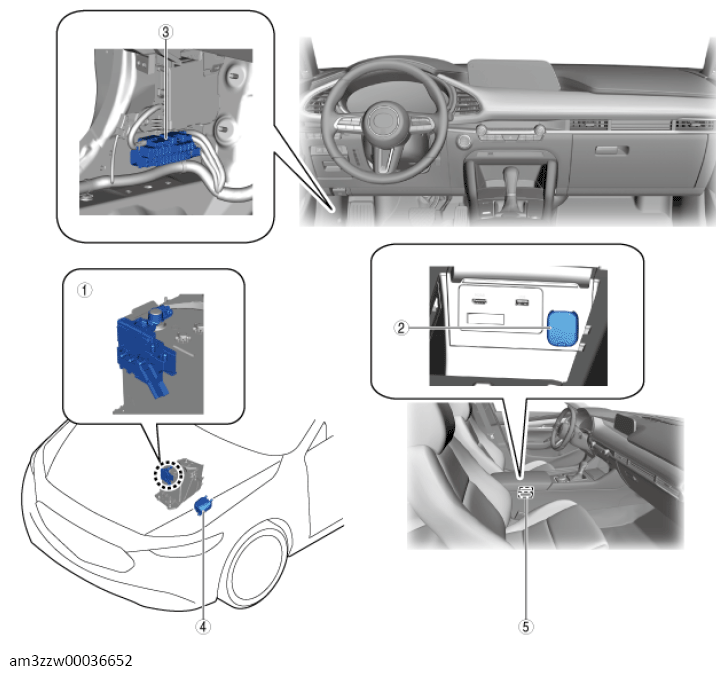

Power System Location Index (Us)

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION (US) .)
2	Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See CENTER ACCESSORY SOCKET INSPECTION .)
3	Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .)
4	Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION (US) .) (See RELAY INSPECTION .)
5	Backup power supply (See BACKUP POWER SUPPLY INSPECTION .)
