Selector Lever Inspection

  1. Switch the ignition ON (engine off or on).
  2. Perform the following procedures to inspect the selector lever.
    • If there is any malfunction, adjust the selector cable. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

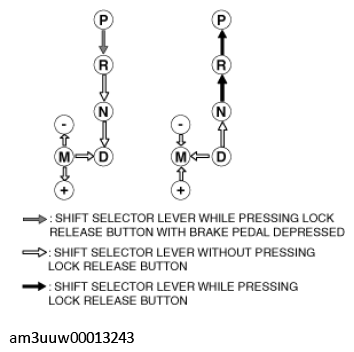

      1. Verify that the selector lever can be operated as shown in the figure.
        G11539724Courtesy of MAZDA MOTORS CORP.
      2. Verify that the selector lever can be operated smoothly and moderately.
