Brush Assembly Note

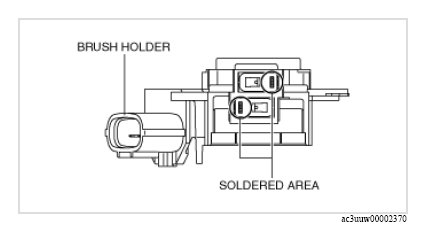

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
G13149635Courtesy of MAZDA MOTORS CORP.

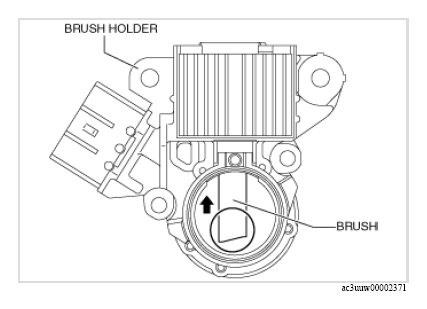

  1. Press the brush into the brush holder with it facing in the direction shown in the figure.
    G13149637Courtesy of MAZDA MOTORS CORP.
  2. Solder the brush to the brush holder.
