Crankshaft Position (CKP) Sensor Inspection
>>

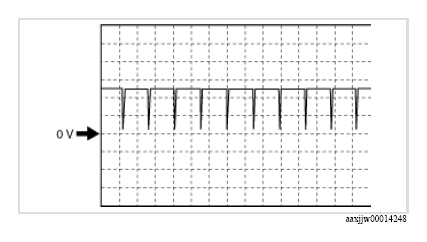

Wave pattern (reference)
Wave pattern (reference)
Courtesy of MAZDA MOTORS CORP.
Oscilloscope setting
2 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
