Teflon Seal Removal Note

NOTE:
  • When stretching the teflon seal, do not damage the fuel injector with the tool.

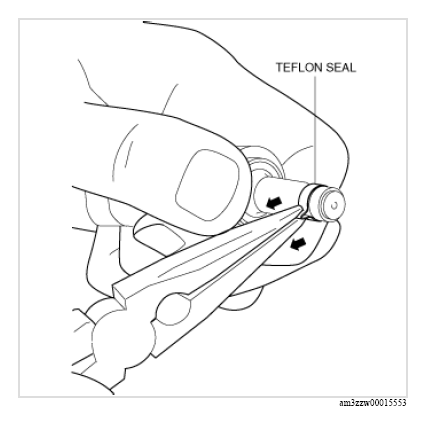

  1. Stretch the teflon seal as shown in the figure.
    G13149402Courtesy of MAZDA MOTORS CORP.

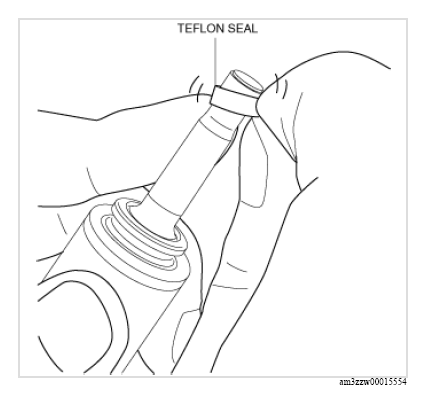

  2. Remove the teflon seal as shown in the figure.
G13149403Courtesy of MAZDA MOTORS CORP.
