Quick Diagnostic Chart

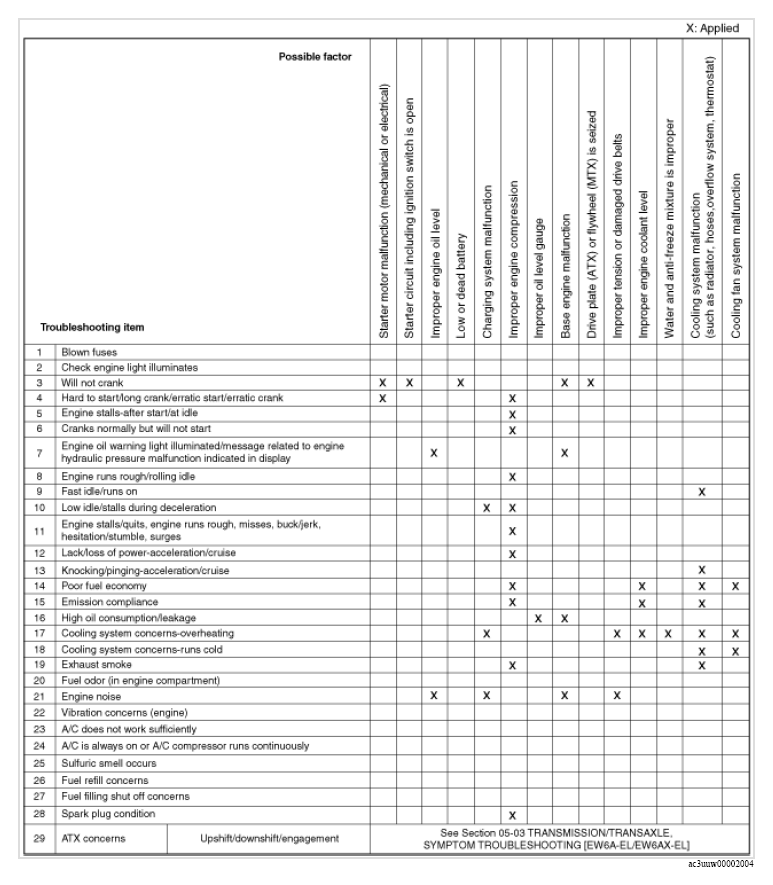

G13148977Courtesy of MAZDA MOTORS CORP.

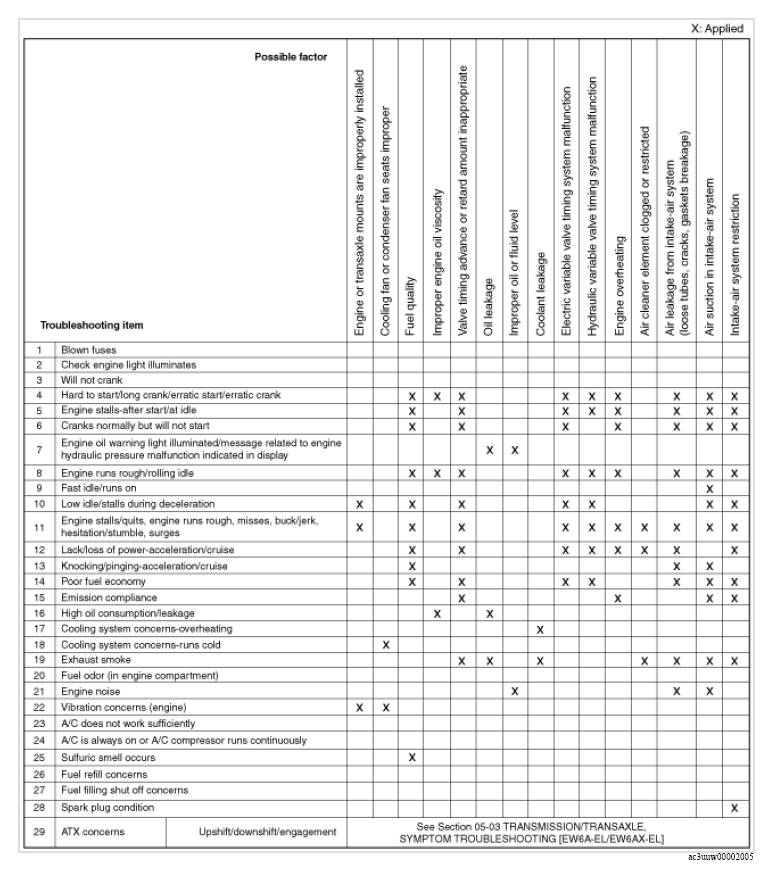

G13148978Courtesy of MAZDA MOTORS CORP.

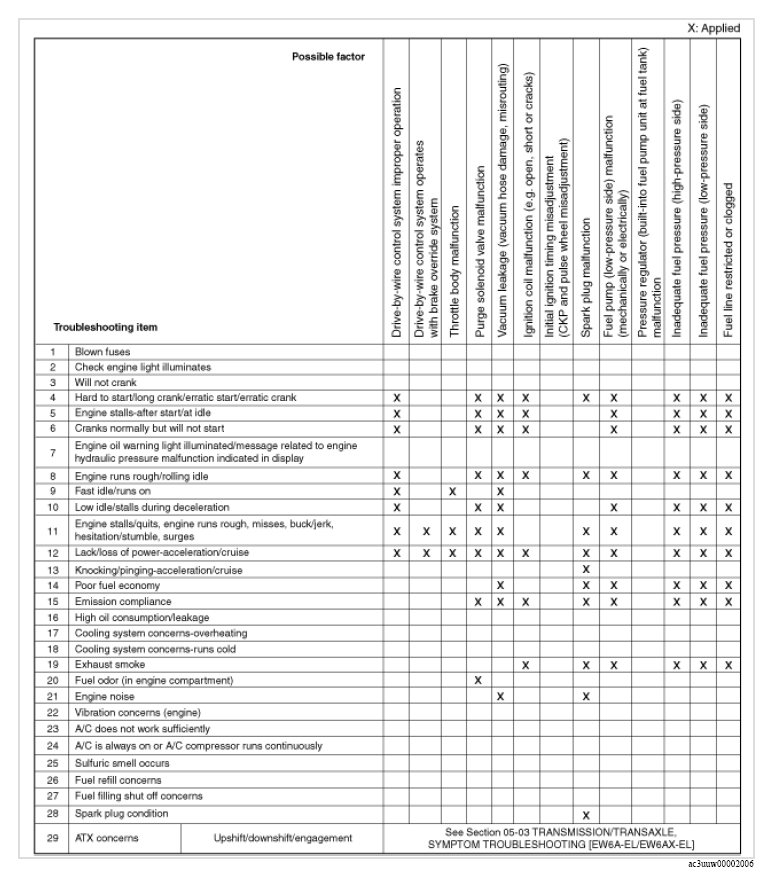

G13148979Courtesy of MAZDA MOTORS CORP.

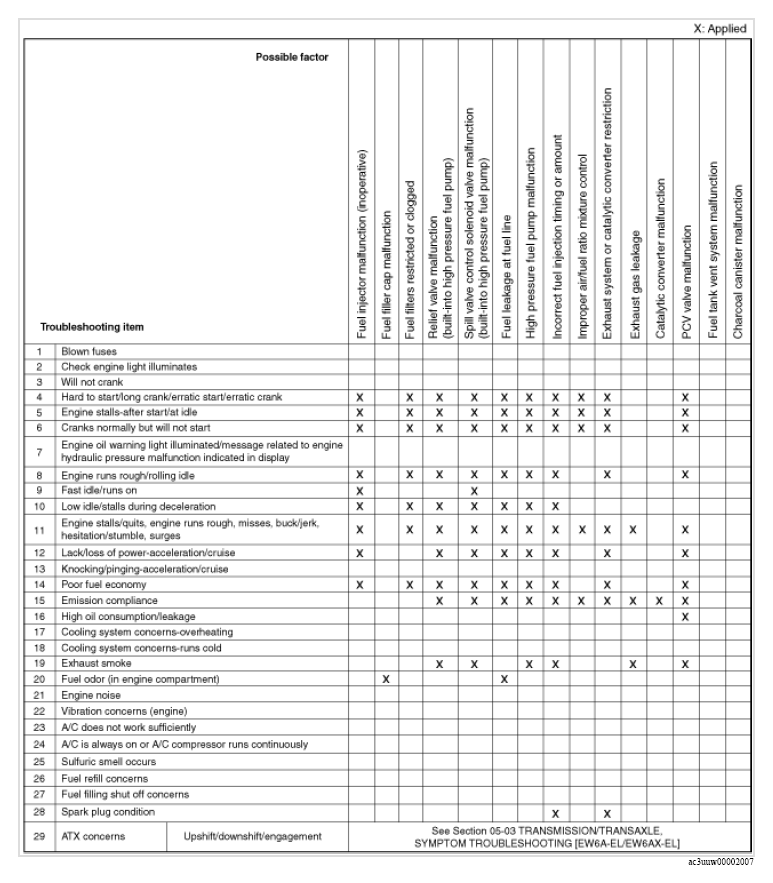

G13148980Courtesy of MAZDA MOTORS CORP.

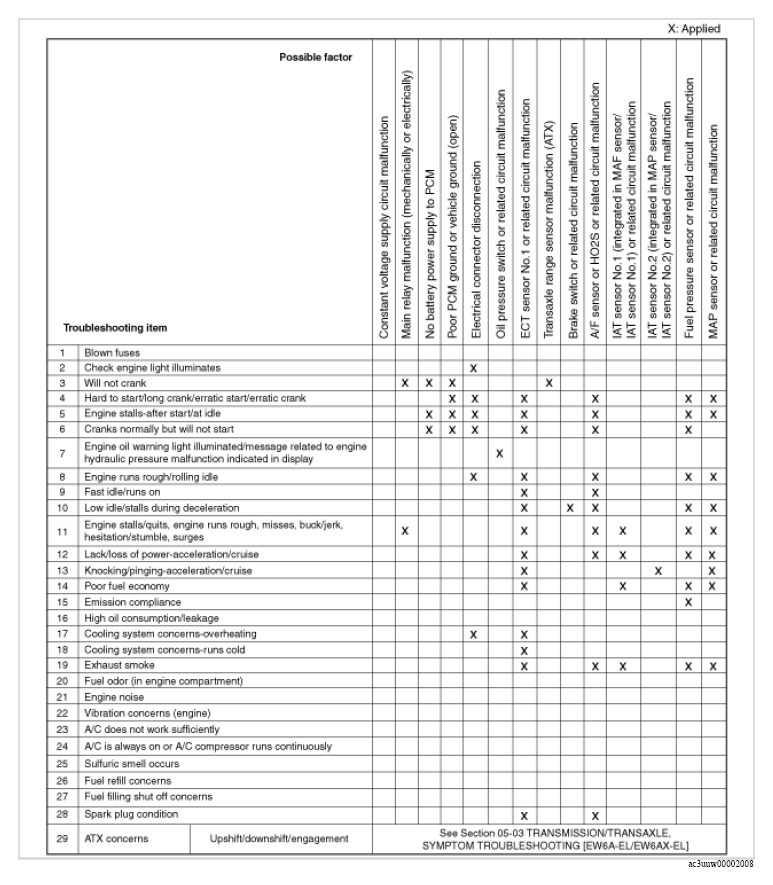

G13148981Courtesy of MAZDA MOTORS CORP.

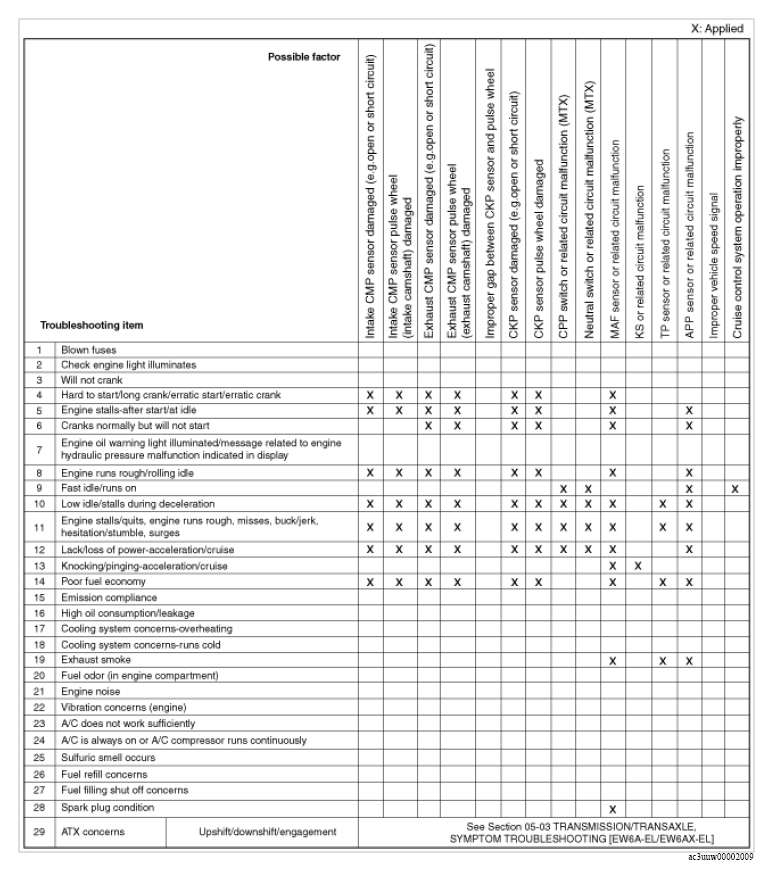

G13148982Courtesy of MAZDA MOTORS CORP.

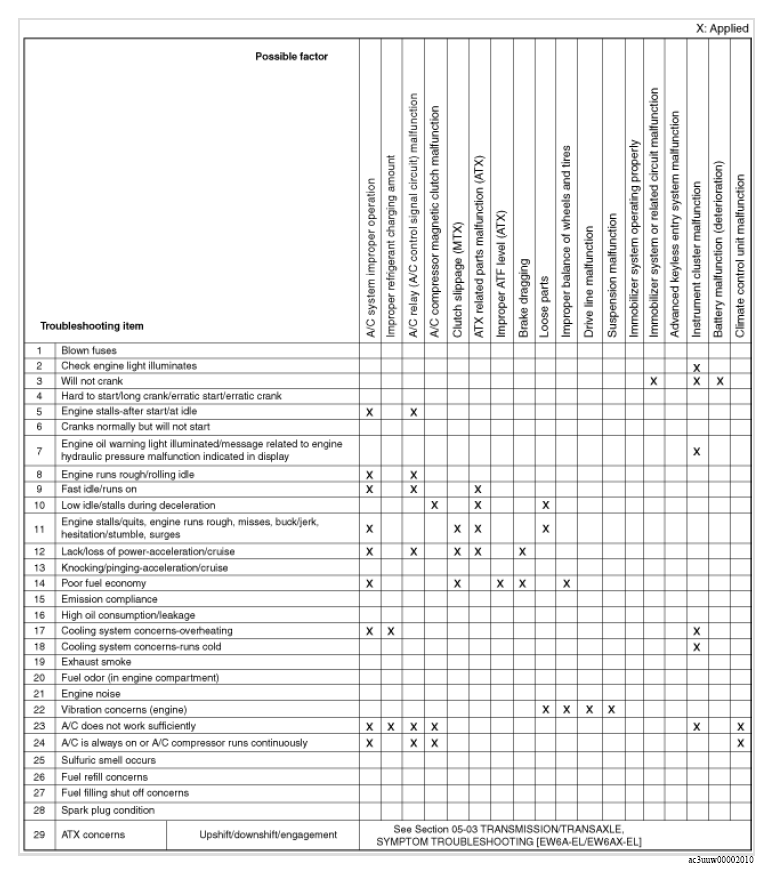

G13148983Courtesy of MAZDA MOTORS CORP.

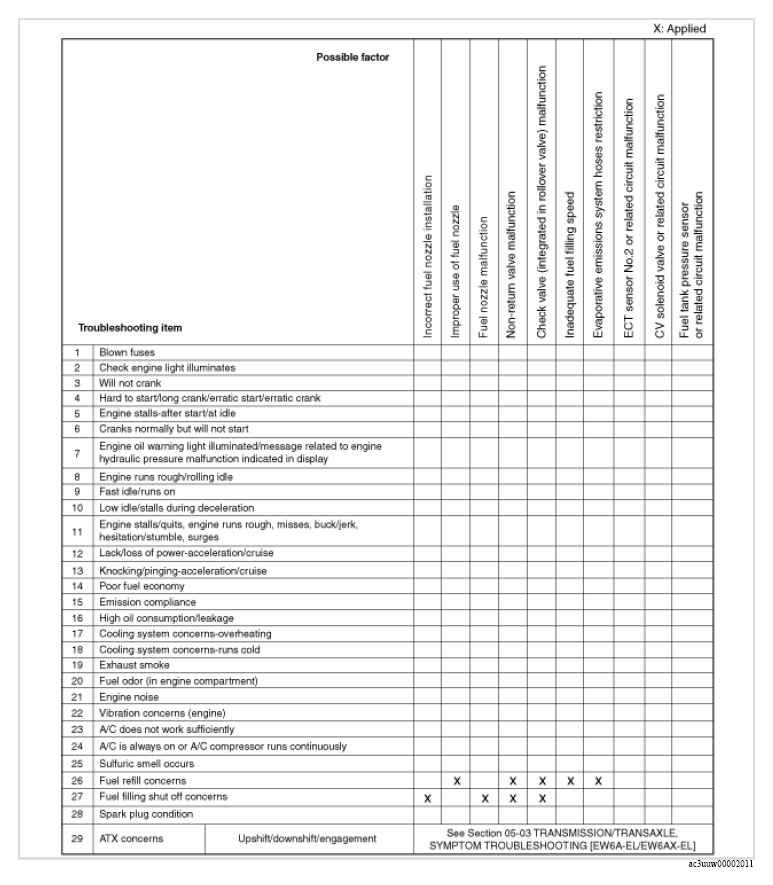

G13148984Courtesy of MAZDA MOTORS CORP.
