Specification (Reference)

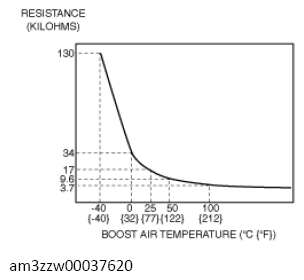

RESISTANCE SPECIFICATION

Boost air temperature (°C {°F}) Resistance (Kilohms)
0 {32} Approx. 34
25 {77} Approx. 17
50{122} Approx. 9.6
100 {212} Approx. 3.7
G13732692Courtesy of MAZDA MOTORS CORP.
