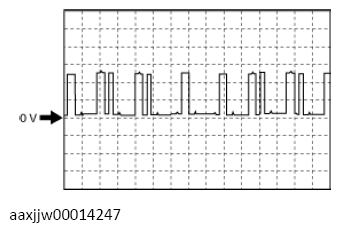

Wave pattern (reference)

G13732697

Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

2 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
