Battery Removal/Installation [VIN M]: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

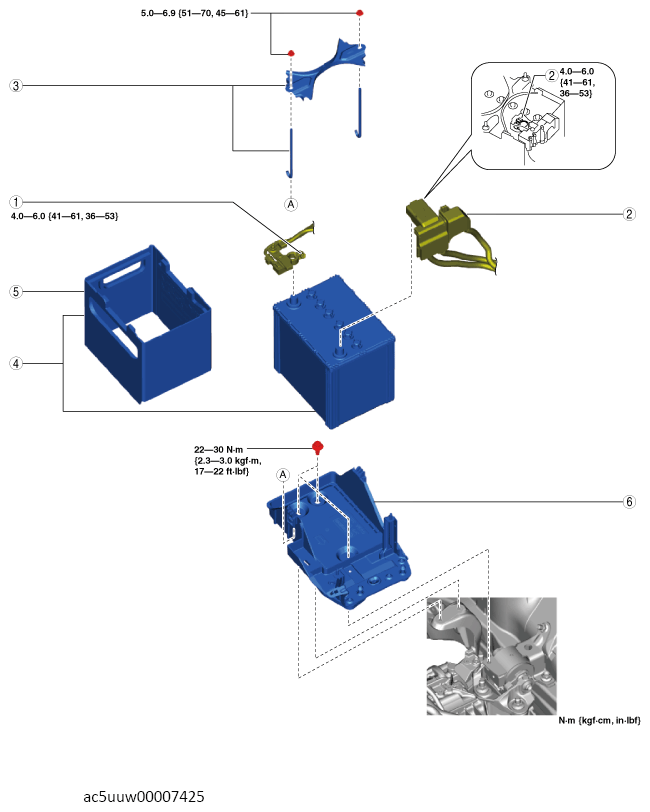

Fig 1: Battery Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2	Positive battery terminal
3	Battery clamp
4	Battery, battery box (See BATTERY, BATTERY BOX REMOVAL NOTE .)
5	Battery box (See BATTERY BOX INSTALLATION NOTE .)
6	Battery tray (See BATTERY TRAY REMOVAL NOTE .) (See BATTERY TRAY INSTALLATION NOTE .)
