PCM Bracket Installation Note

  1. Install the bolts using the following procedure:

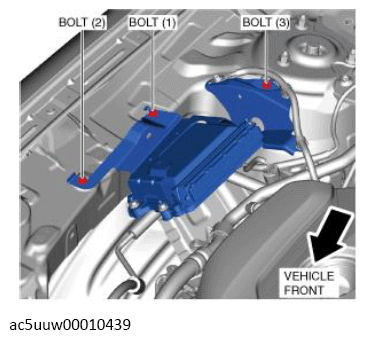

    Fig 1: PCM Bracket Bolts Tightening Sequence
    G13119118Courtesy of MAZDA MOTORS CORP.
    1. Temporarily tighten the bolt (1).
    2. Install the bolt (2).
    3. Tighten the bolts (1) and (3).
