Rear Accessory Socket Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
3. Trunk side pocket (RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
4. Trunk end trim (RH) (See TRUNK END TRIM REMOVAL/INSTALLATION .)
5. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
6. Rear accessory socket (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .)

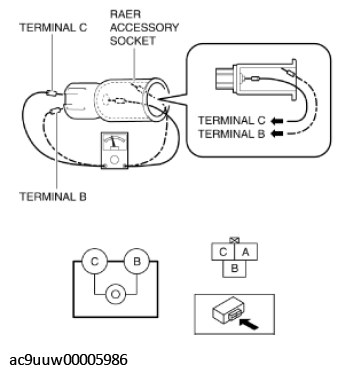

Connect the tester probe to the position shown in the figure and verify that there is continuity.

Courtesy of MAZDA MOTORS CORP.
- If it cannot be verified, replace the rear accessory socket. (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .)
