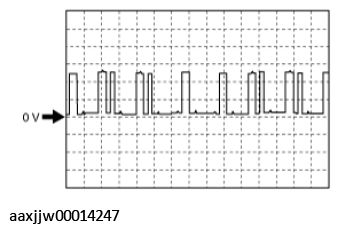

Wave pattern (reference)

G11274151

Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

2 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
