Home >> Mazda >> 2021 >> CX-9 Signature >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Injector Removal/Installation >> Stopper Ring Removal Note

Stopper Ring Removal Note

NOTE:
  • When removing the stopper ring, do not damage the fuel injector with the tool.

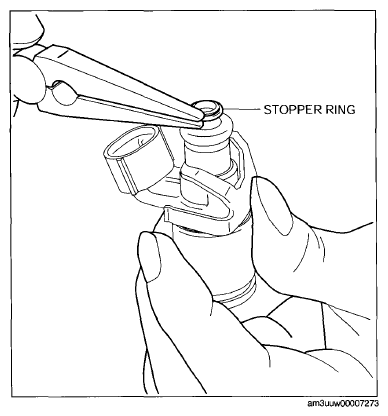

  1. Remove the stopper ring as shown in the figure.
    G09074955Courtesy of MAZDA MOTORS CORP.
