Home >> Mazda >> 2021 >> CX-9 Signature >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting - Engine >> Quick Diagnostic Chart

Quick Diagnostic Chart

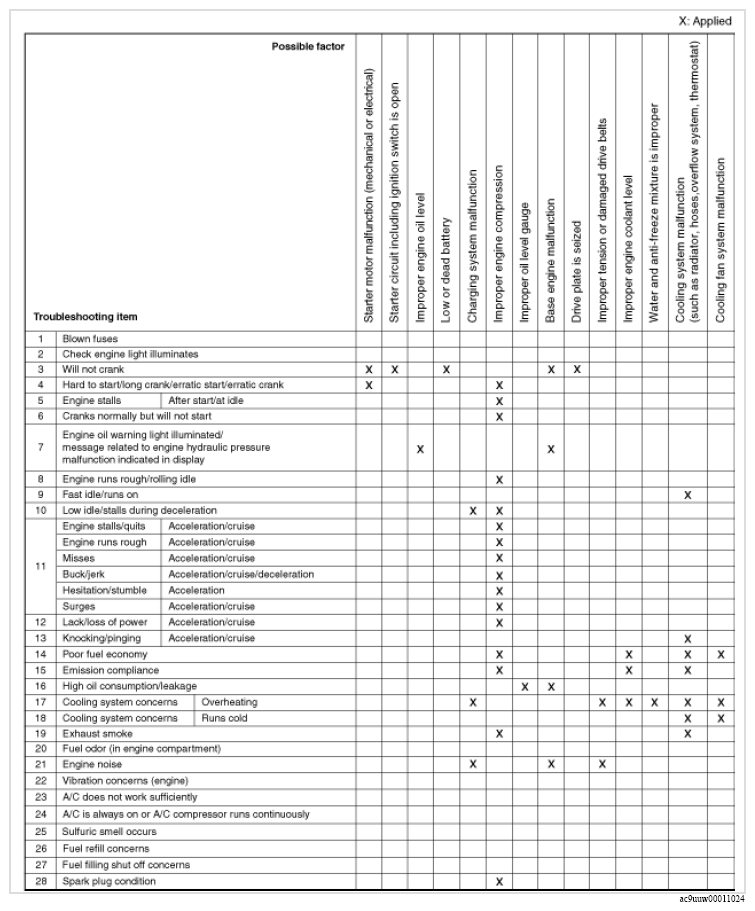

G13444370Courtesy of MAZDA MOTORS CORP.

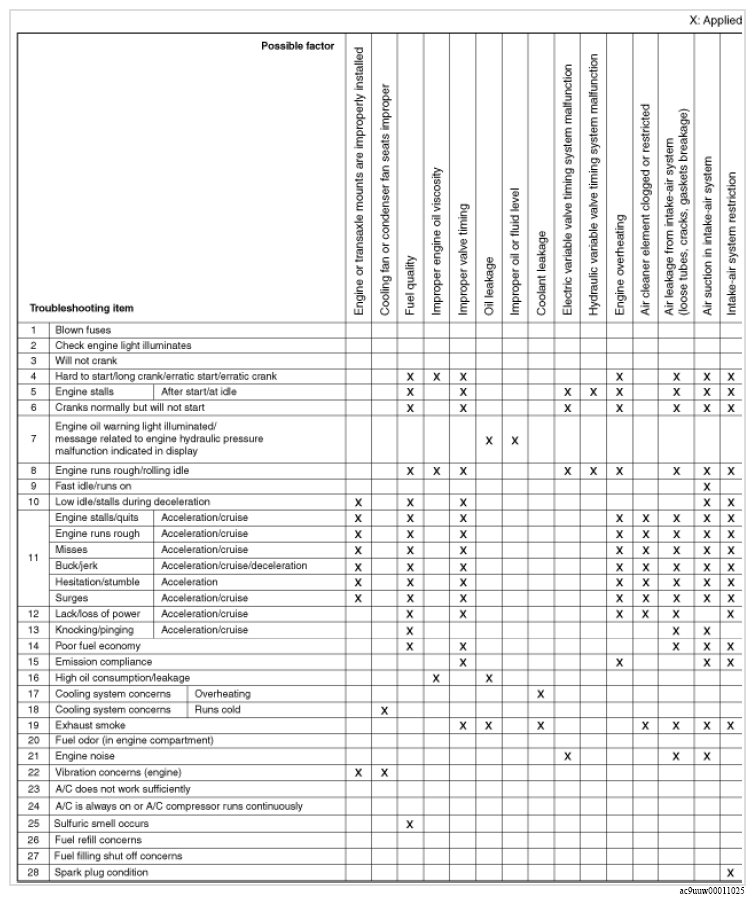

G13444371Courtesy of MAZDA MOTORS CORP.

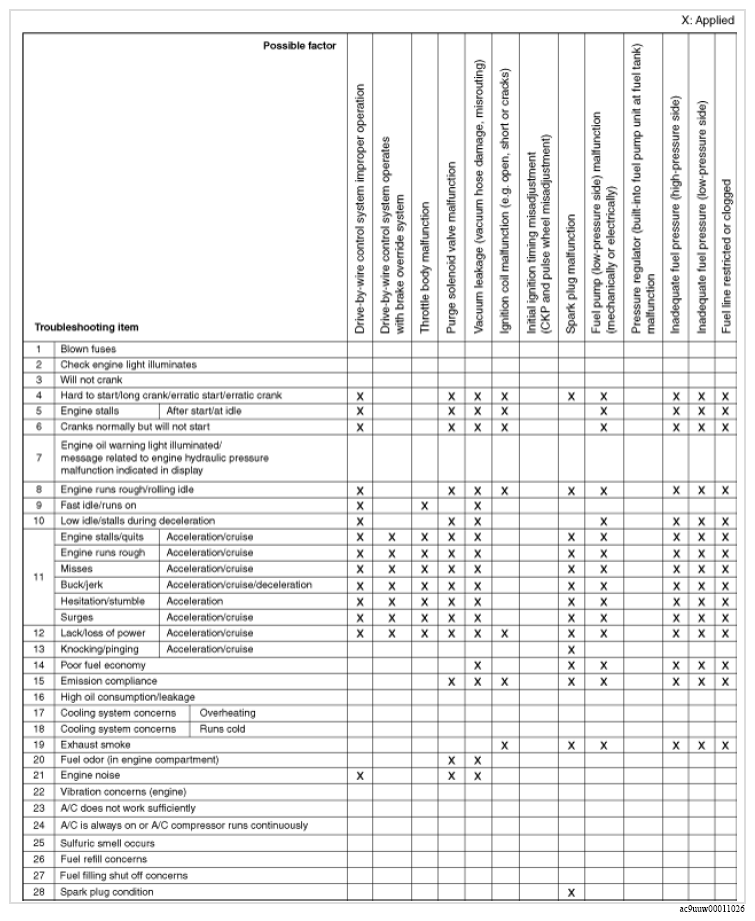

G13444372Courtesy of MAZDA MOTORS CORP.

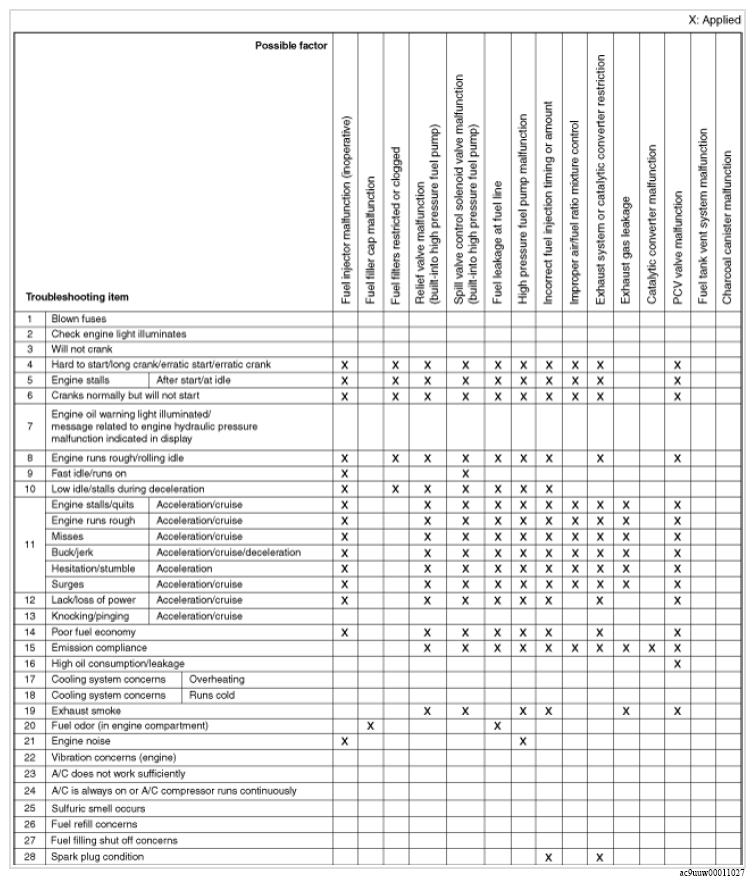

G13444373Courtesy of MAZDA MOTORS CORP.

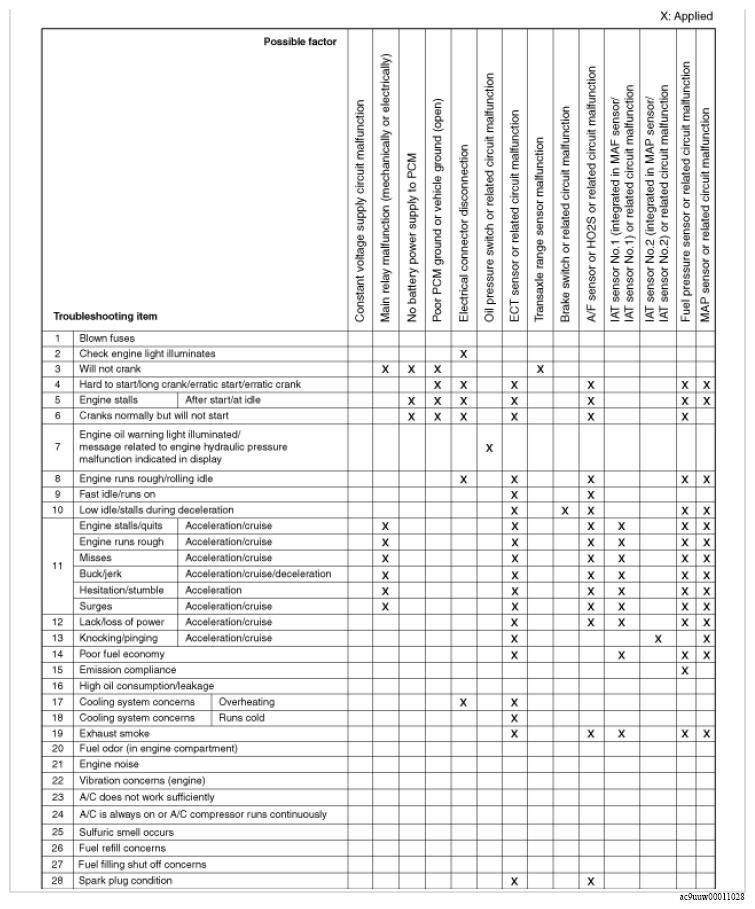

G13444374Courtesy of MAZDA MOTORS CORP.

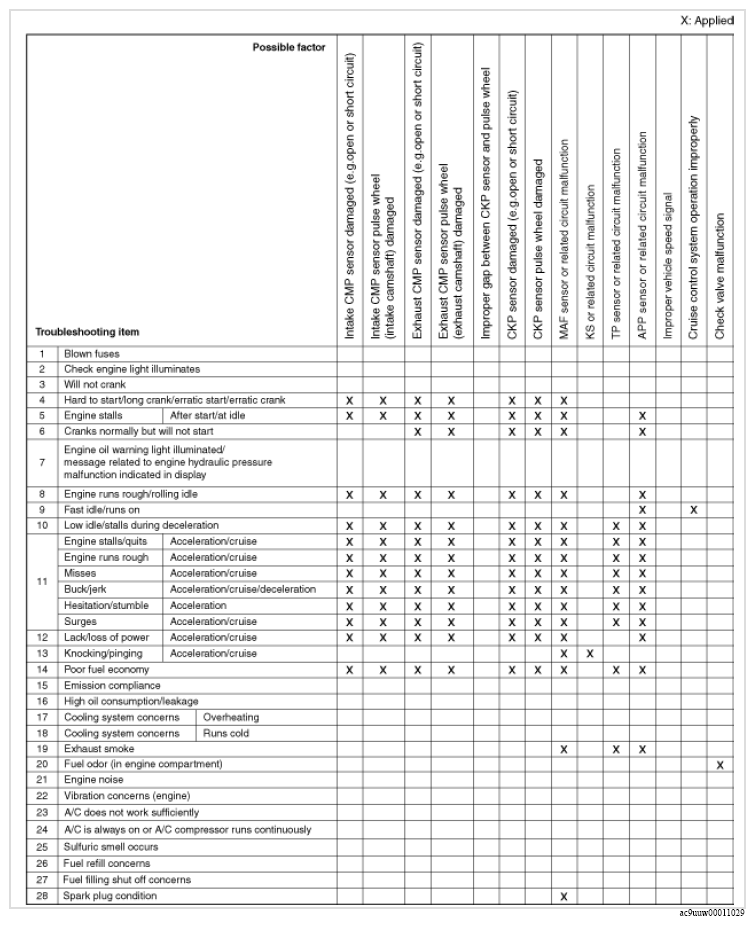

G13444375Courtesy of MAZDA MOTORS CORP.

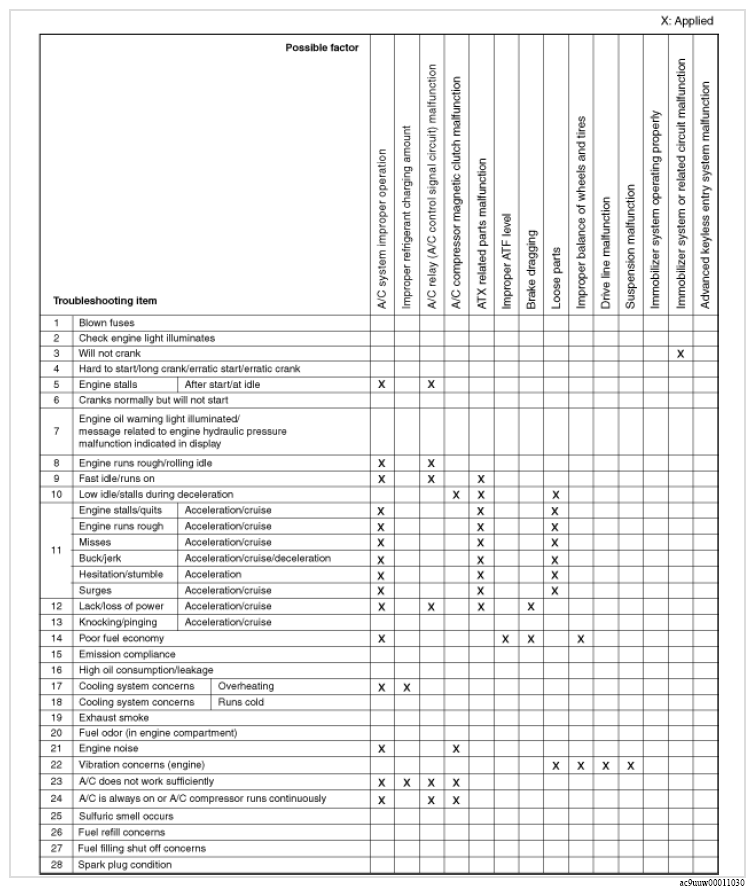

G13444376Courtesy of MAZDA MOTORS CORP.

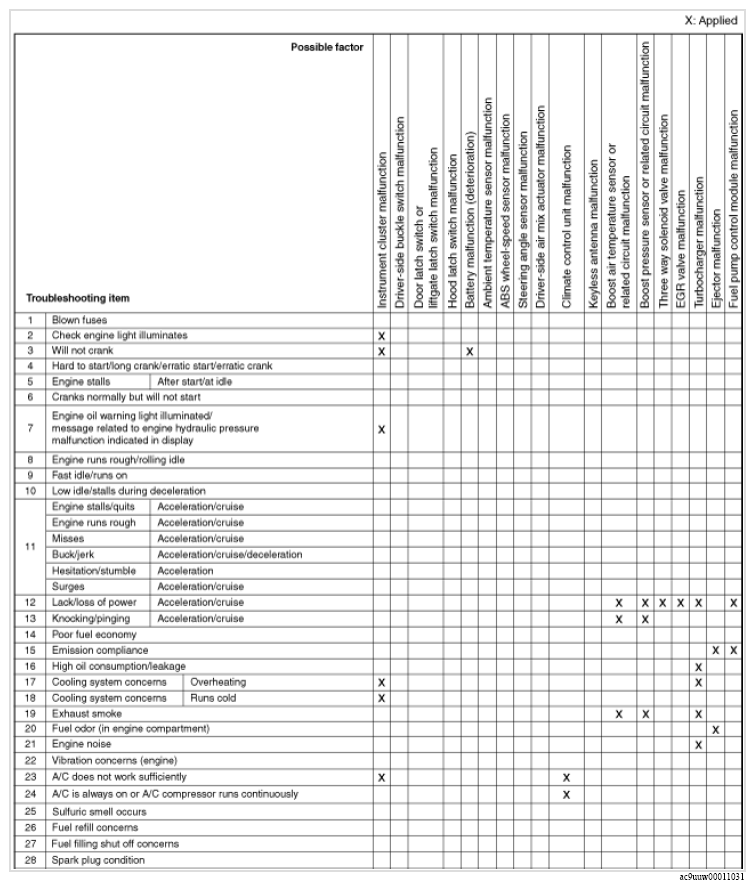

G13444377Courtesy of MAZDA MOTORS CORP.
