Drive Selection Switch Removal/Installation

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
2. Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
3. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

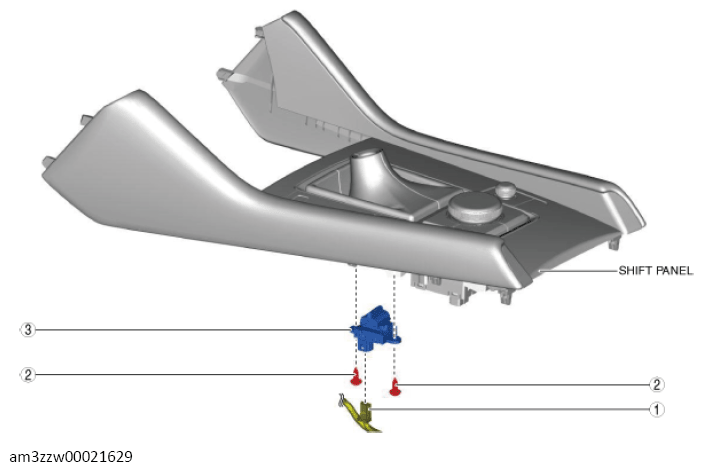

DRIVE SELECTION SWITCH COMPONENT OPERATIONS

Component No.	Refer to
1	Drive selection switch connector
2	Screw
3	Drive selection switch
