Home >> Mercedes Benz >> 1997 >> SL320 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Trouble Code Identification >> Fuel Injection System Tests >> Fuel Injection System Test (Steps 1.2-2.1)

Fuel Injection System Test (Steps 1.2-2.1)

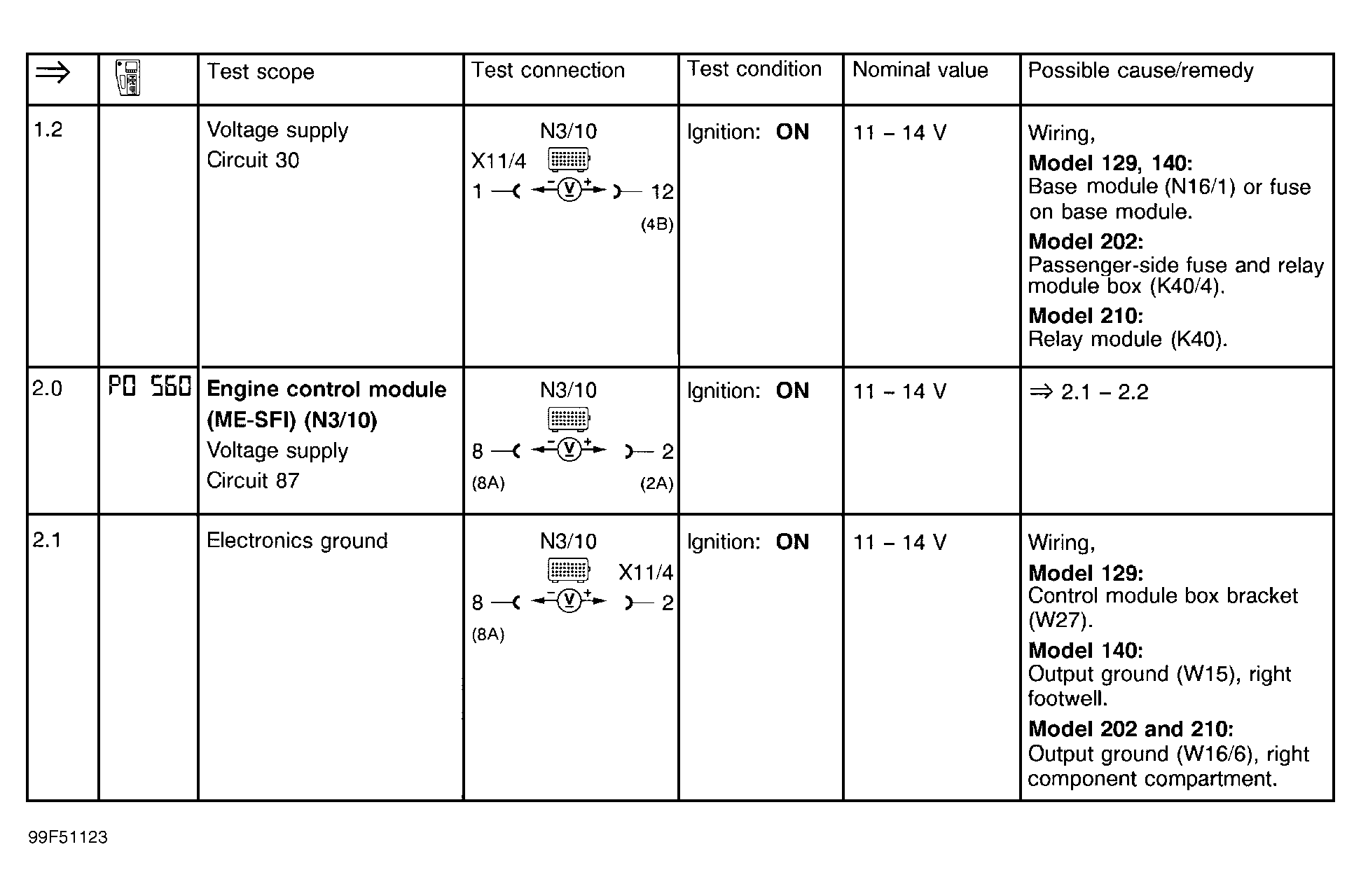

Fig 1: Fuel Injection System Test (Steps 1.2-2.1)

G99F51123

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
