Fuel Pump Tests
Fuel Pump Tests

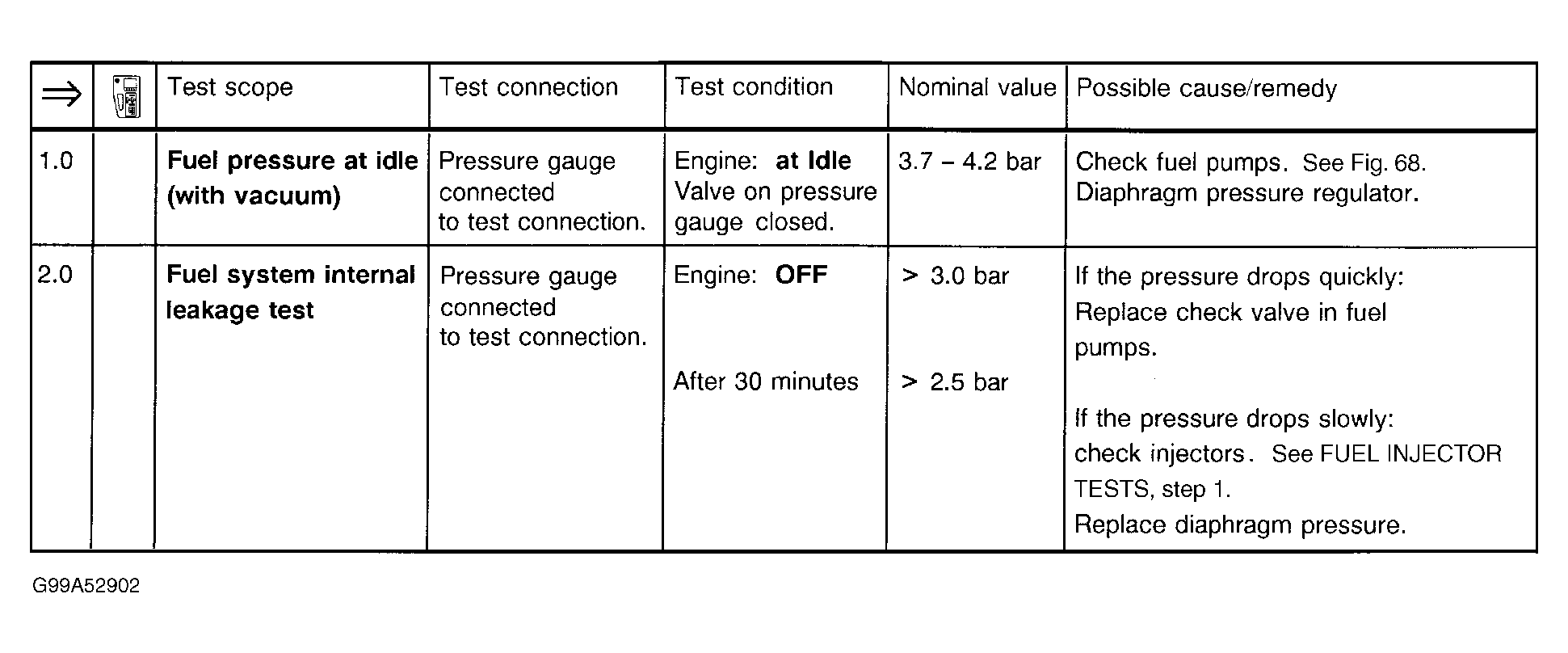

Fig 1: Fuel Pressure & Leakage Tests
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

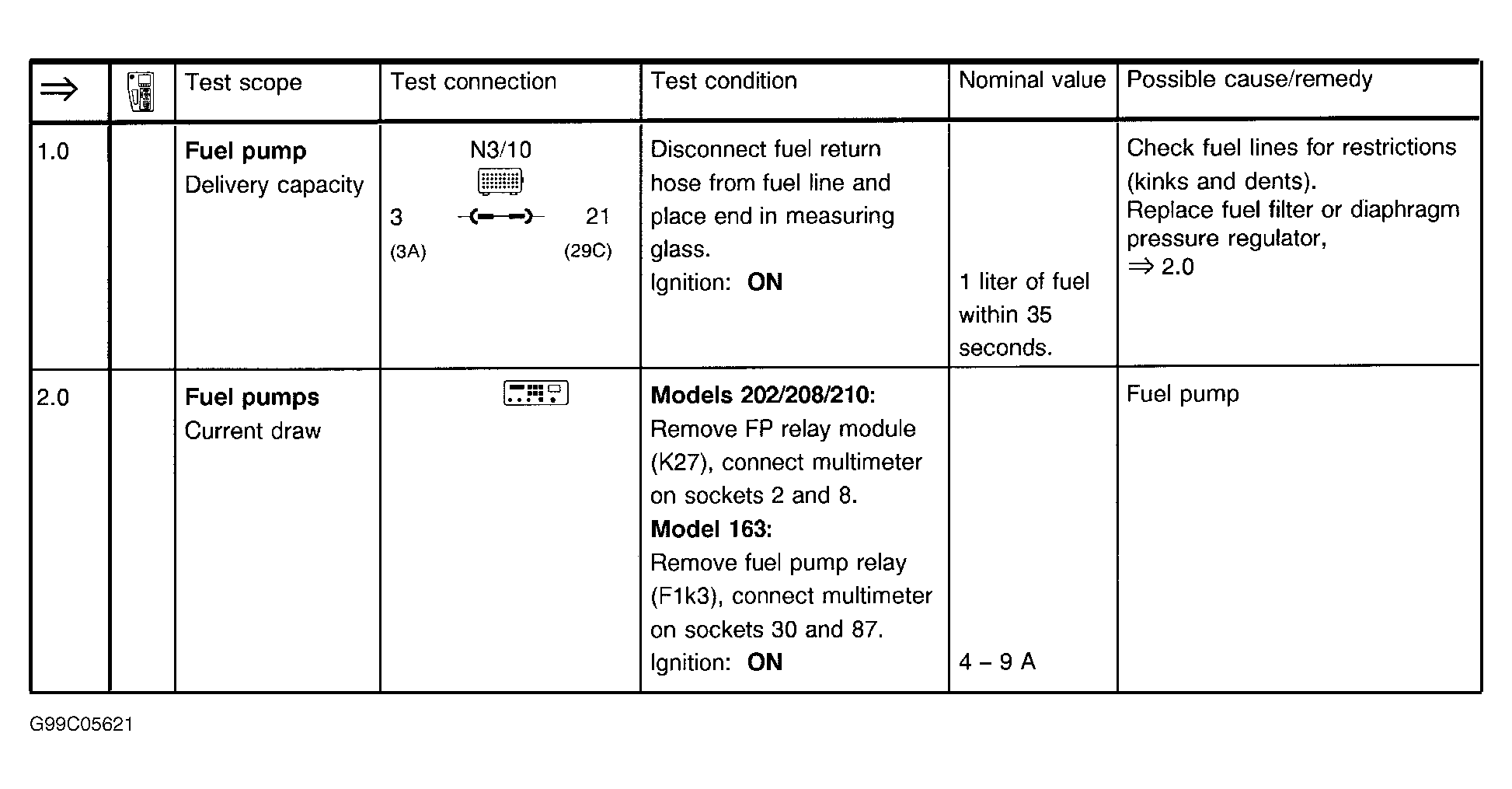

Fig 2: Fuel Pump Tests
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
