Engine Controls - Self-Diagnostics With Codes
>>
Diagnostic Trouble Code Identification
>>
Fuel Injector Tests
Fuel Injector Tests
NOTE:
Far left column in following graphic is step numbers.

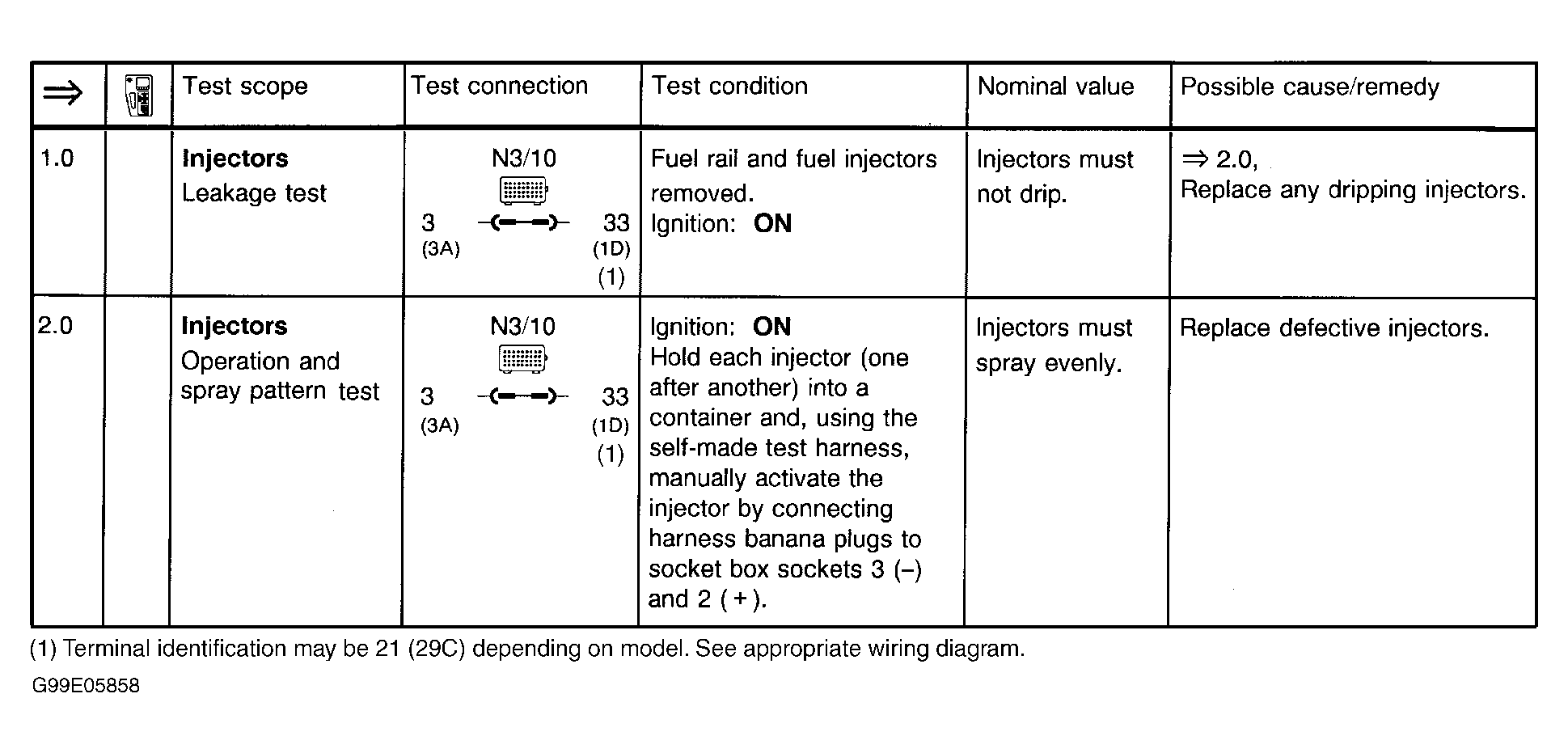

Fig 1: Fuel Injector Tests
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
