Fuel Lines & Hoses

Inspect all metal fuel lines for damage from vibration, impact, or kinking. Inspect rubber hoses for cracks, kinks, or deterioration. Remove fuel tank cap, disconnect fuel line at inlet side of fuel pump, and blow lines clear with compressed air. Also clean tank vent lines.

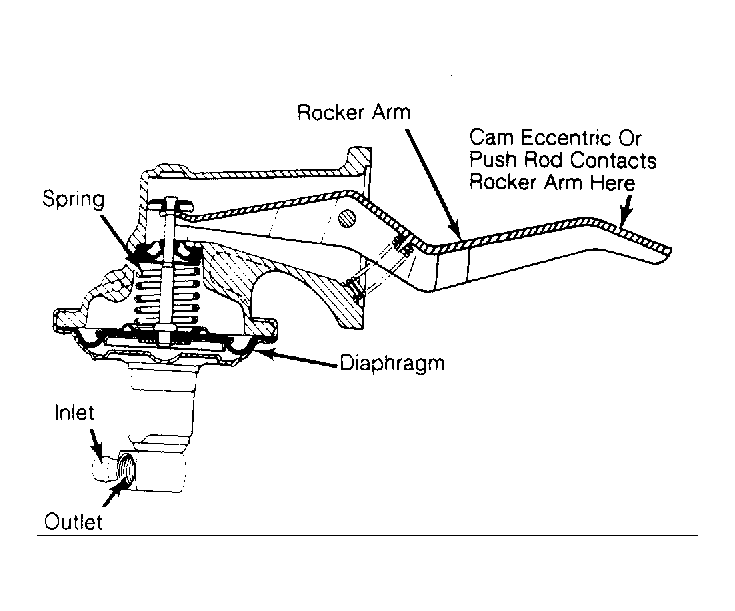

Fig 1: Typical Mechanical Fuel Pump Assembly
G668
