Wiring Diagrams

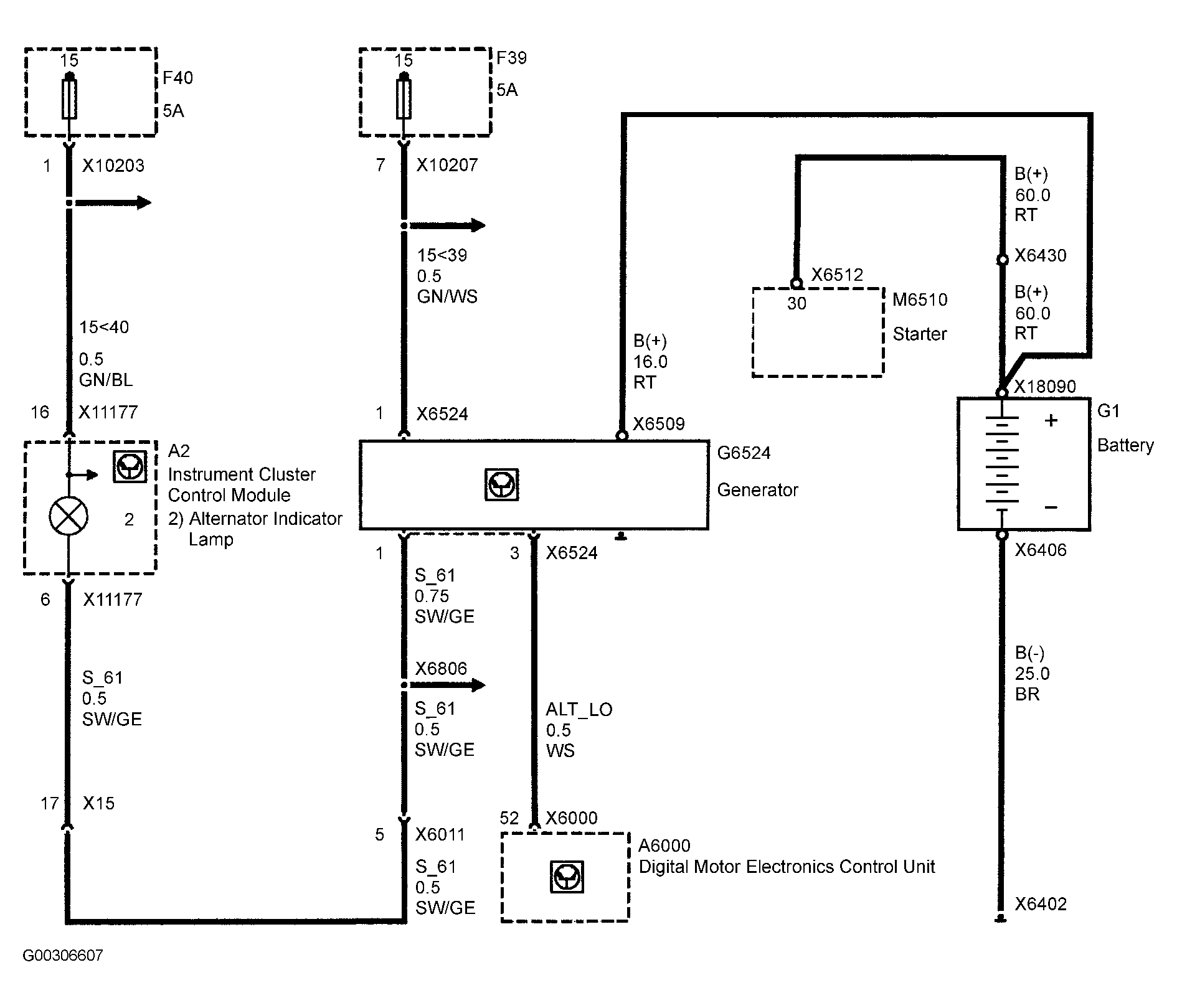

Fig 1: Charging System Wiring Diagram (Cooper With Denso Generator)
Courtesy of BMW OF NORTH AMERICA, INC.

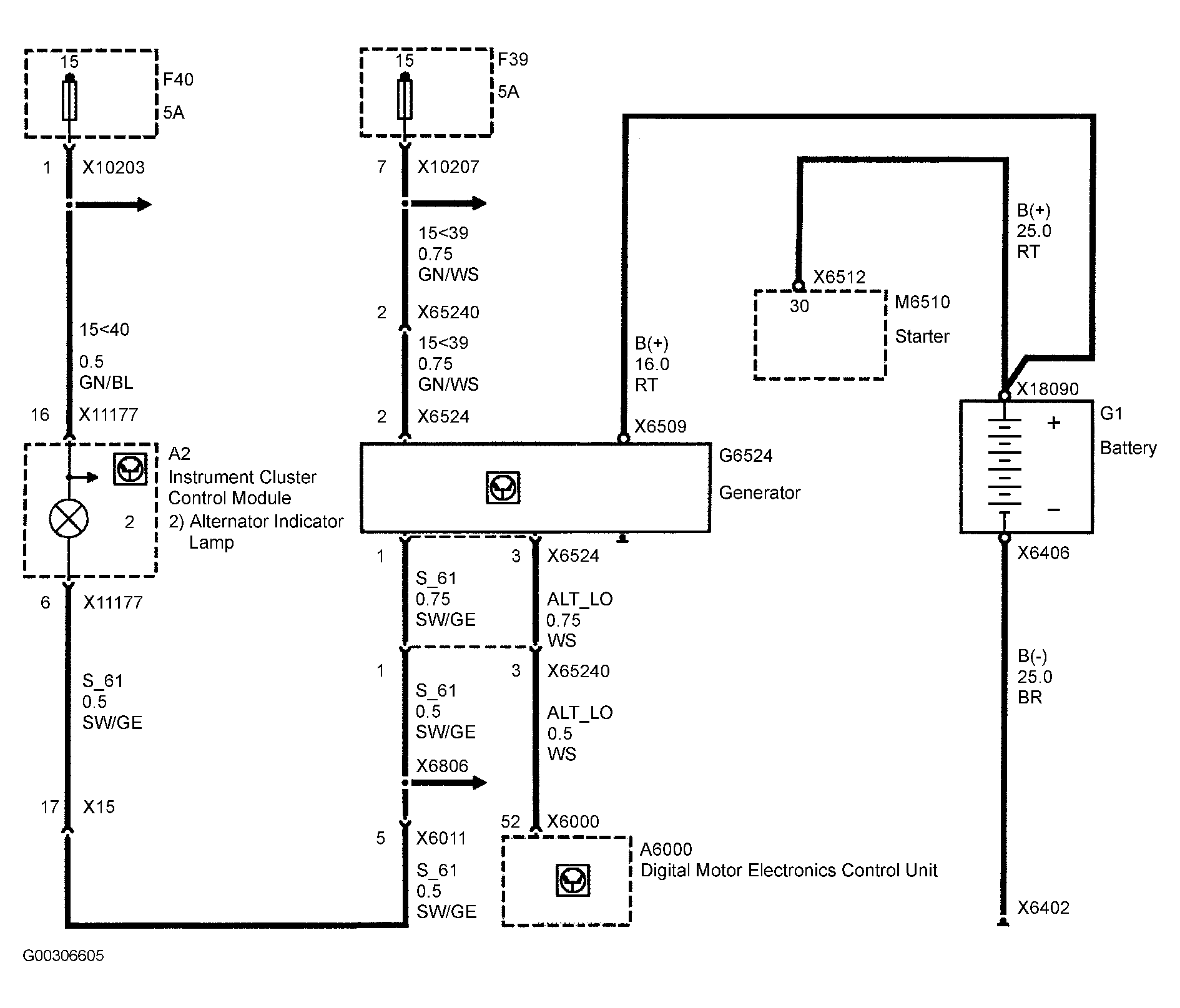

Fig 2: Charging System Wiring Diagram (Cooper With Valeo Generator)
Courtesy of BMW OF NORTH AMERICA, INC.

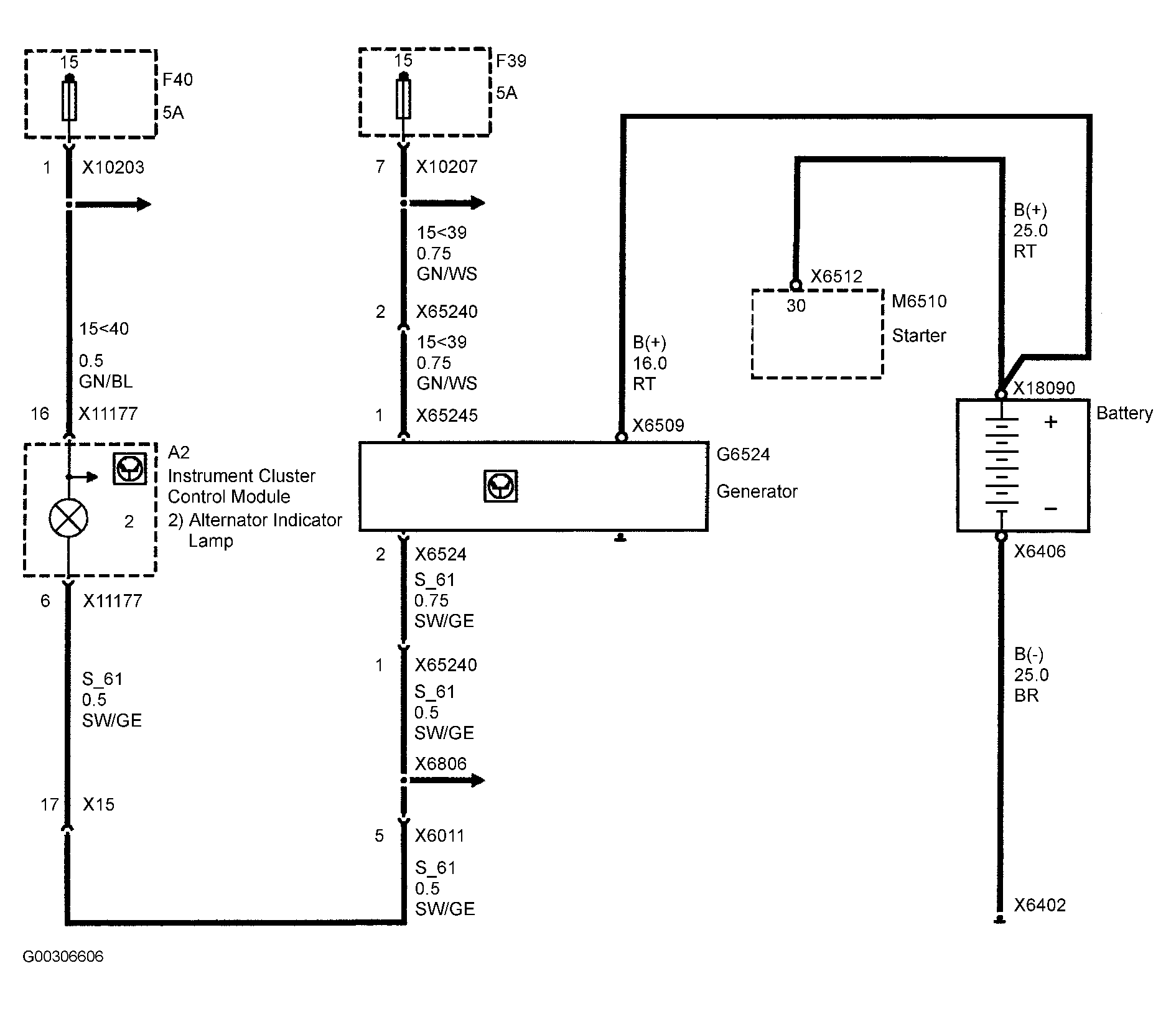

Fig 3: Charging System Wiring Diagram (Cooper S)
Courtesy of BMW OF NORTH AMERICA, INC.
