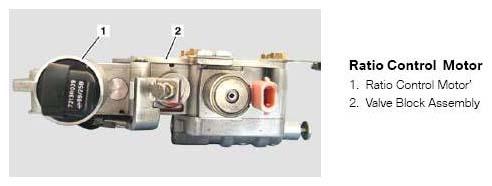

Ratio Control Motor
The Ratio Control Motor is housed inside the transmission, adjacent to the oil cooler pipe connections. The motor and solenoids are connected to the main harness via a circular connector. The motor is operational in all transmission modes and controls the hydraulic control unit to adjust the primary pulley to the appropriate position.
The motor which controls the transmission ratio is a linear actuator and a bi-polar stepper motor.
