Additional Test Cables: Notes

There are additional test cables connected to the rear of the DISplus on the measurement system board. The ends of the cables are color-coded for easy identification.

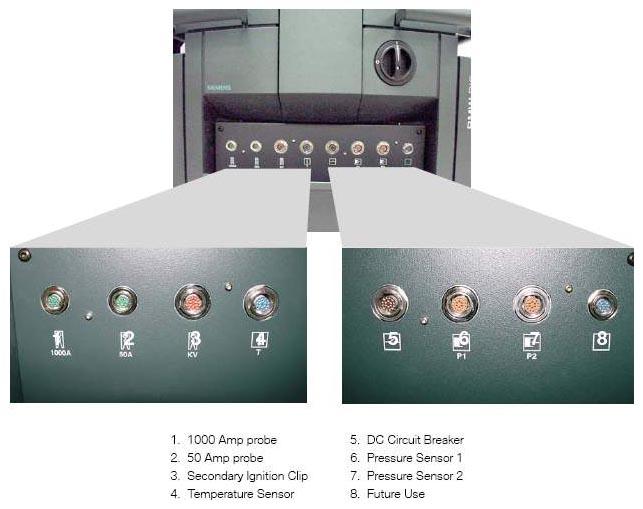

Fig 1: Rear Displus Measurement System Board
G04729979Courtesy of BMW OF NORTH AMERICA, INC.
