System Components: Generator: Notes

All generators are mounted to the block with 3 fasteners and are located on the right side of the engine (viewed from the front of the engine). The MINI COOPER S generator is situated in a lower position to accommodate the supercharger.

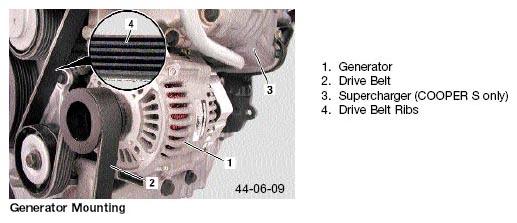

Fig 1: Identifying Generator Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
