Ecu Terminal Identification

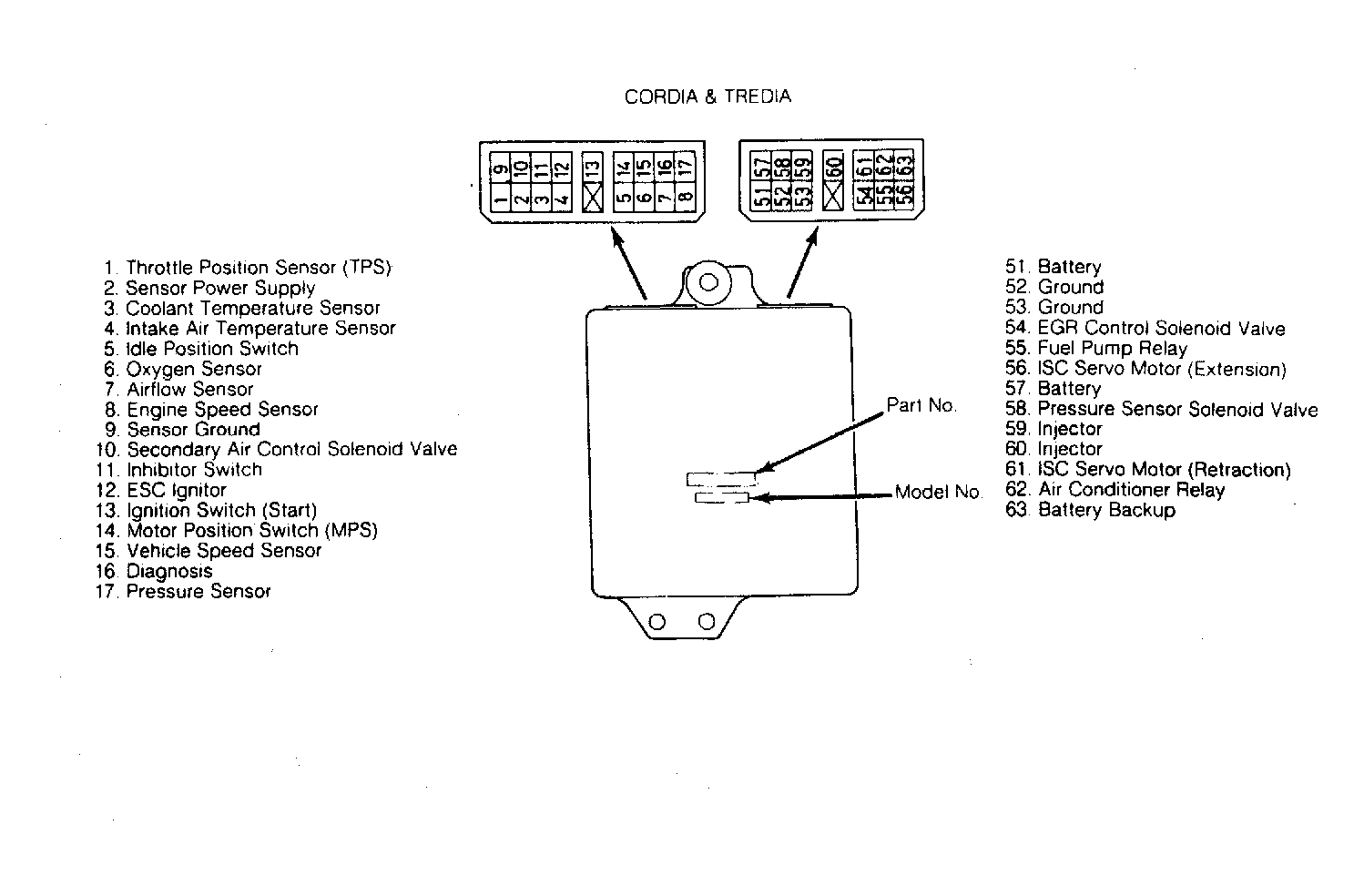

Fig 1: Electronic Control Unit Connector Pin Location & Function (Cordia & Tredia)

G61403

Fig 2: Electronic Control Unit Connector Pin Location & Function (Mirage & Starion)

G61402
