Electrical Load Switch

Remove electrical load switch. Check continuity between terminals using an ohmmeter. See Fig 1 . There should be continuity between terminals No. 1, No. 2, No. 3, No. 4 and No. 6 to No. 5. Reverse leads to ensure there is no continuity between terminals. If results are otherwise, replace electrical load switch.

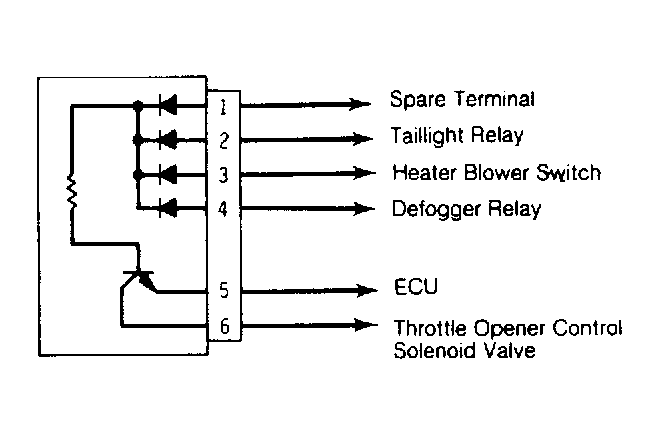

Fig 1: Electrical Load Switch Terminal Location & Function

Courtesy of CHRYSLER MOTORS.
