Control Unit: Notes
NOTE:
For Engine Control Module (ECM) or Powertrain Control Module (PCM) location, see POWERTRAIN CONTROL MODULE (ECM/PCM) LOCATION table. To identify ECM/PCM power and ground terminals, see appropriate pin voltage chart in
PIN VOLTAGE CHARTS article. To identify ECM/PCM power and ground circuits, see appropriate wiring diagram in

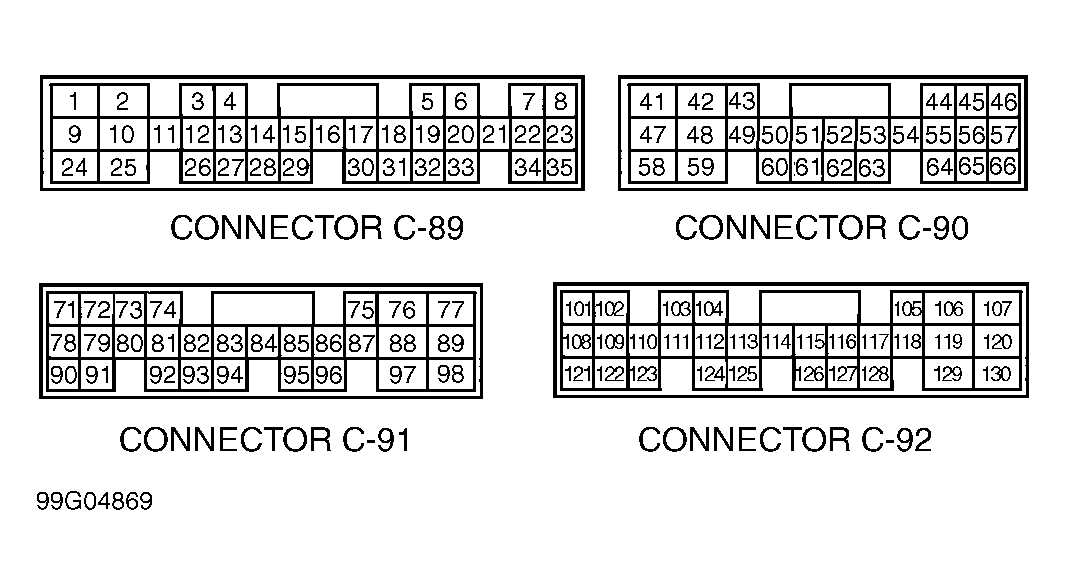

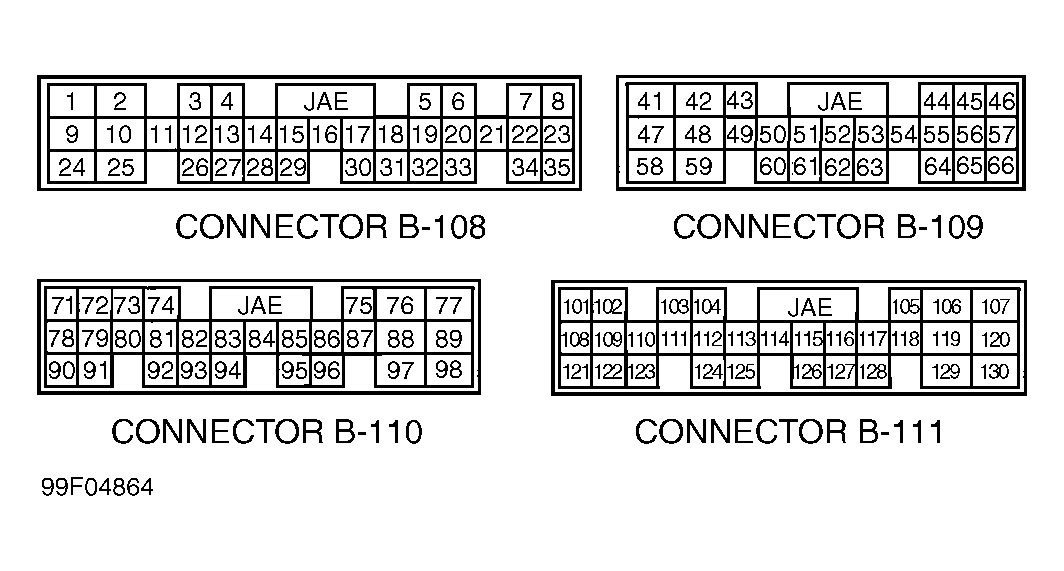

WIRING DIAGRAMS article. See Figure-Figure
.
POWERTRAIN CONTROL MODULE (ECM/PCM) LOCATION
| Application | Location |
|---|---|
| Eclipse 2.0L Non-Turbo | Next To Engine Compartment Fuse/Relay Box |
| Galant | Behind Glove Box |
| Mirage, Montero & Montero Sport | Behind Right Side Kick Panel, Below Glove Box |
| All Other Models | Behind Center Console |
