Power Circuits

Turn ignition on. Backprobe and check for battery voltage at ECM/PCM power terminals. If battery voltage is not present, check operation of MFI relay. See RELAYS  under MOTORS, RELAYS & SOLENOIDS. If relay is okay, check suspect circuit between ECM/PCM and relay. Perform repairs as necessary.

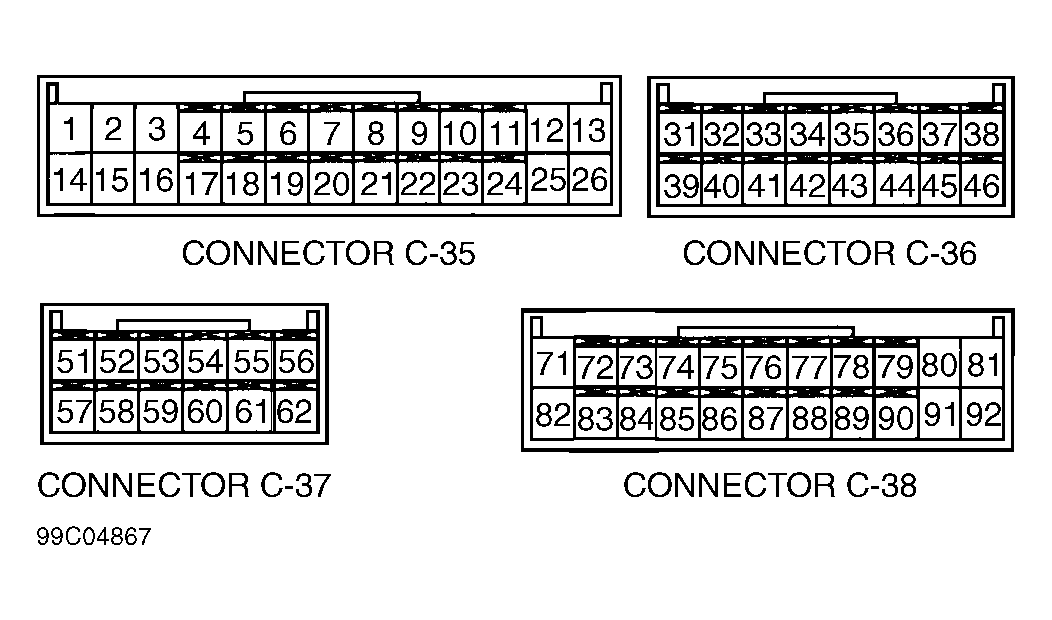

Fig 1: Identifying ECM/PCM Terminals (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

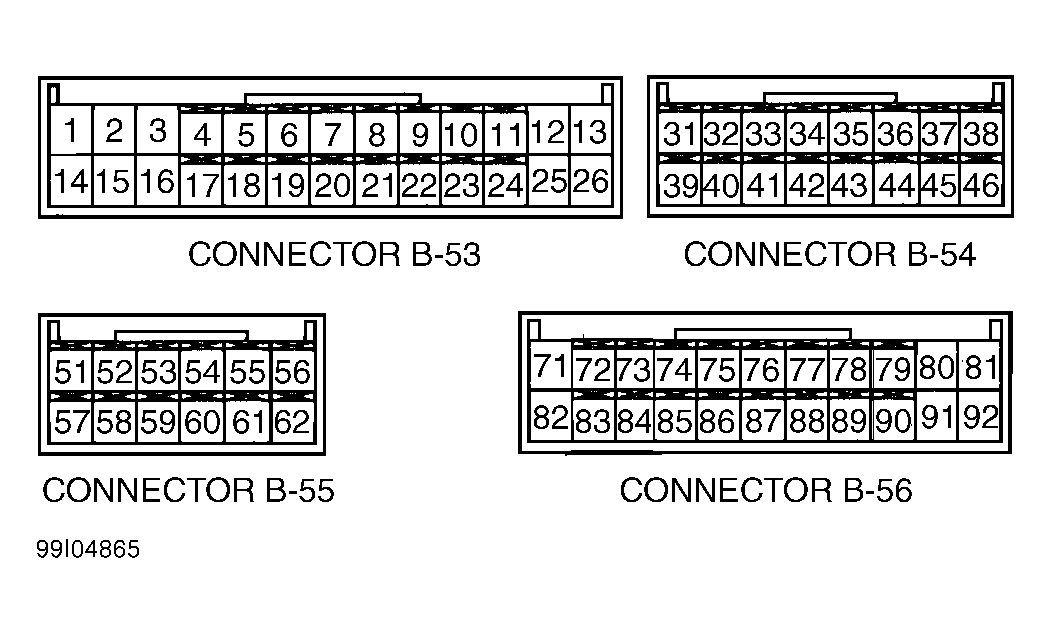

Fig 2: Identifying ECM/PCM Terminals (Eclipse 2.0L Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

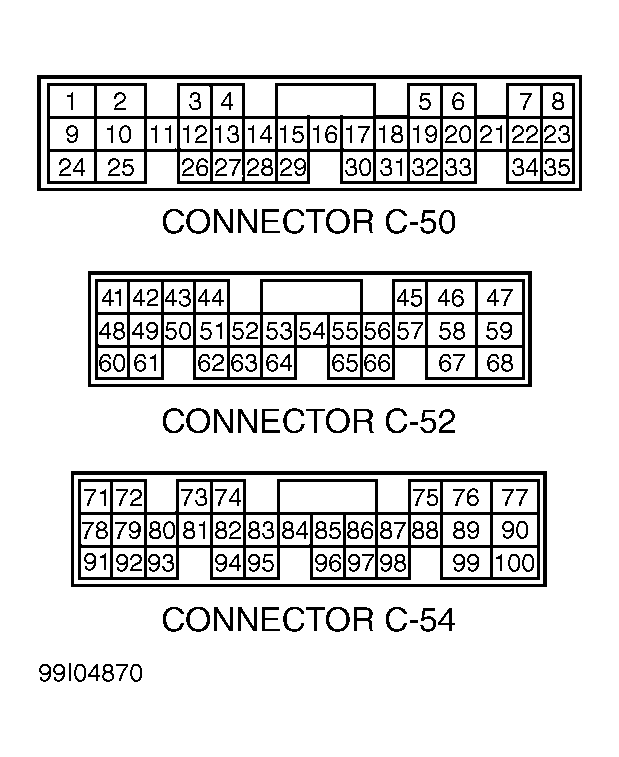

Fig 3: Identifying ECM/PCM Terminals (Eclipse 2.0L Turbo & 2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

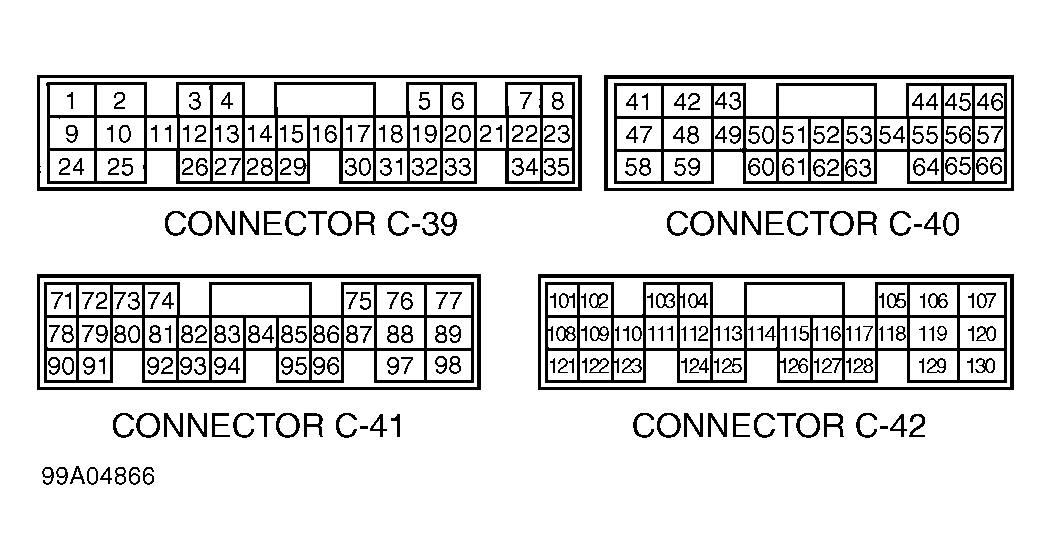

Fig 4: Identifying ECM/PCM Terminals (Galant 2.4L M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Identifying ECM/PCM Terminals (Galant 2.4L A/T & 3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

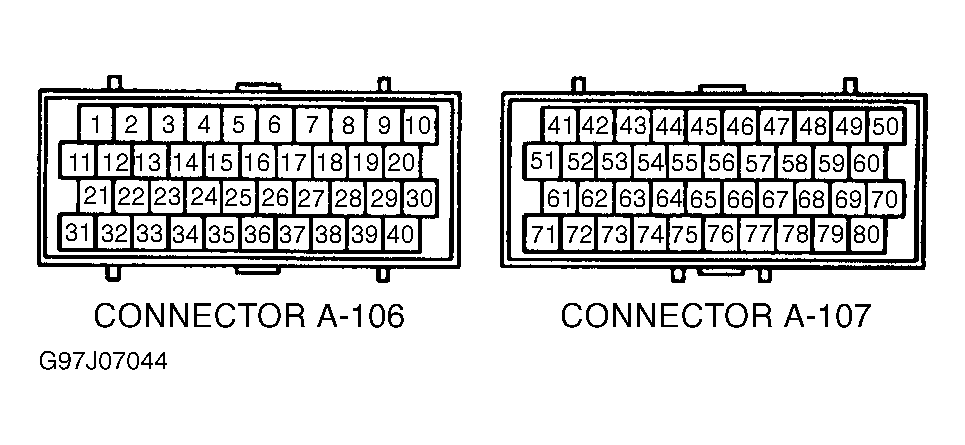

Fig 6: Identifying ECM/PCM Terminals (Mirage & Montero Sport 2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

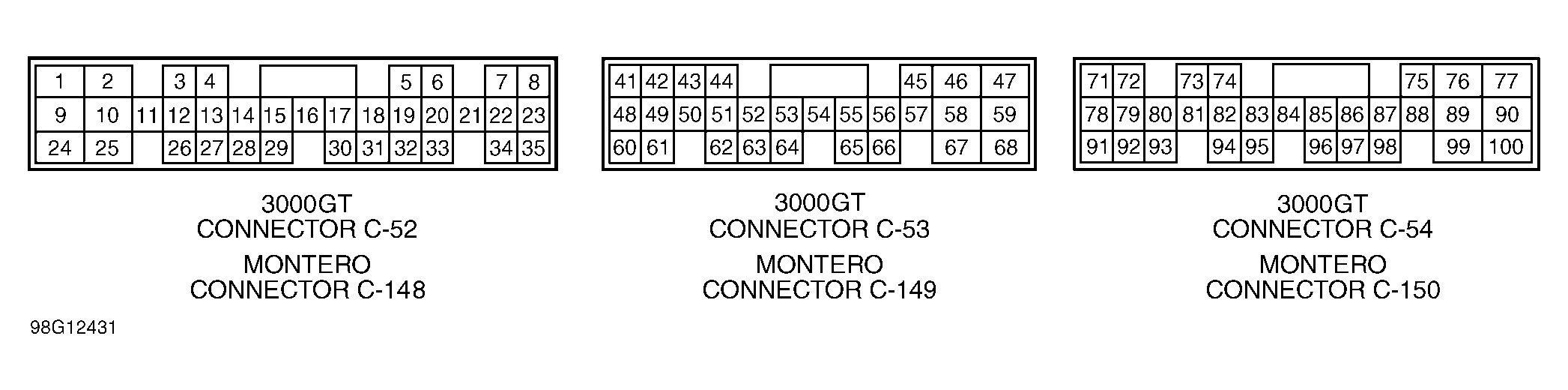

Fig 7: Identifying ECM/PCM Terminals (Montero & 3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 8: Identifying ECM/PCM Terminals (Montero Sport 3.0L M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 9: Identifying ECM/PCM Terminals (Montero Sport 3.0L A/T & 3.5L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
